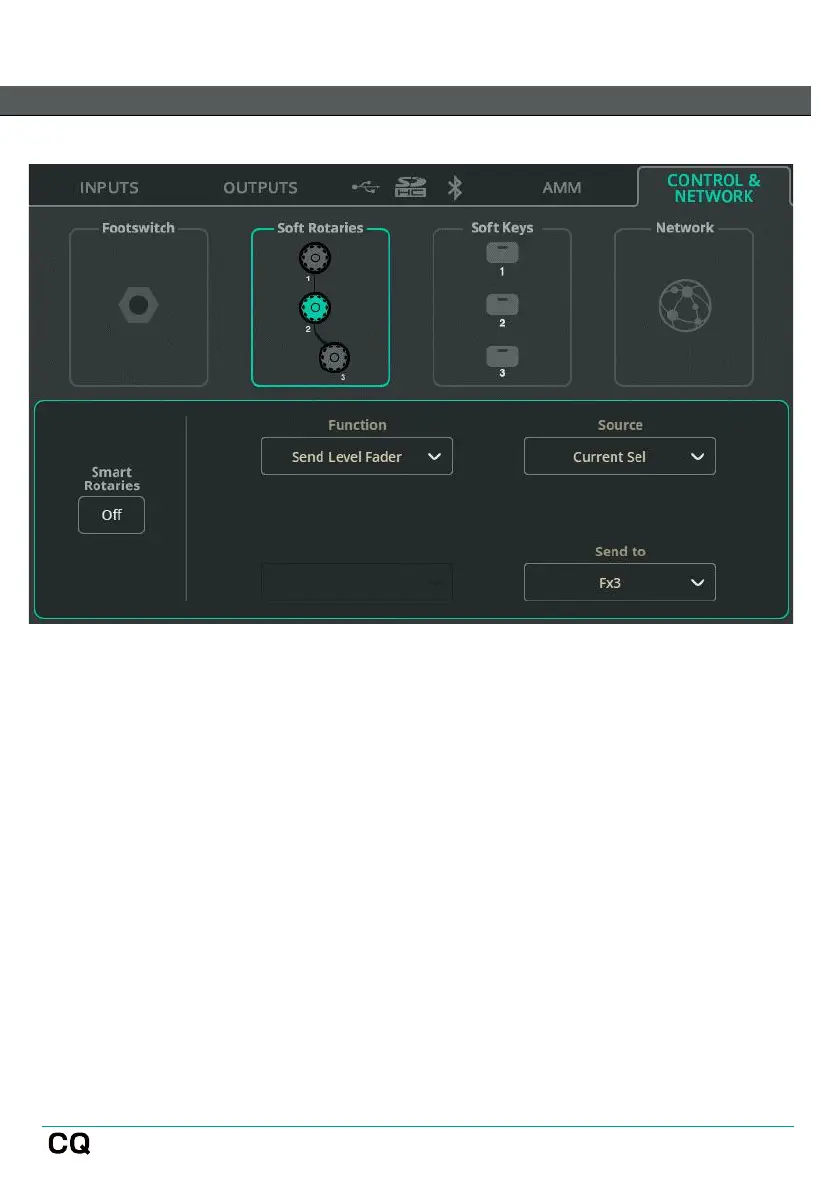

CONTROL & NETWORK / Soft Rotaries (CQ-18T)
Each Soft Rotary can be selected individually.
Smart Rotaries – When turned on, rotaries are automatically mapped to controls
depending on the screen being viewed. For example, in the input channel bank view,
they will control Gain, Pan and Level, then when viewing a PEQ, they will control
Width, Frequency and Gain of the last adjusted band.
This feature works globally for all three Soft Rotaries and will prevent assignment
of other functions until disabled.
Function – Assign a function to the selected Soft Rotary.
Once the function is selected, further options will appear e.g. for channel selection.
 Use ‘Current Sel’ in the Source option to have the Soft Rotary control the selected
function for the currently selected channel. In this way, it’s possible to do things like
quickly adjust send levels to a particular output or FX unit from the last selected
channel and when viewing any other screen.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
