ALLEN & HEATH CQ-12T User Manual

 125
User Guide V1.1.0 Issue 1

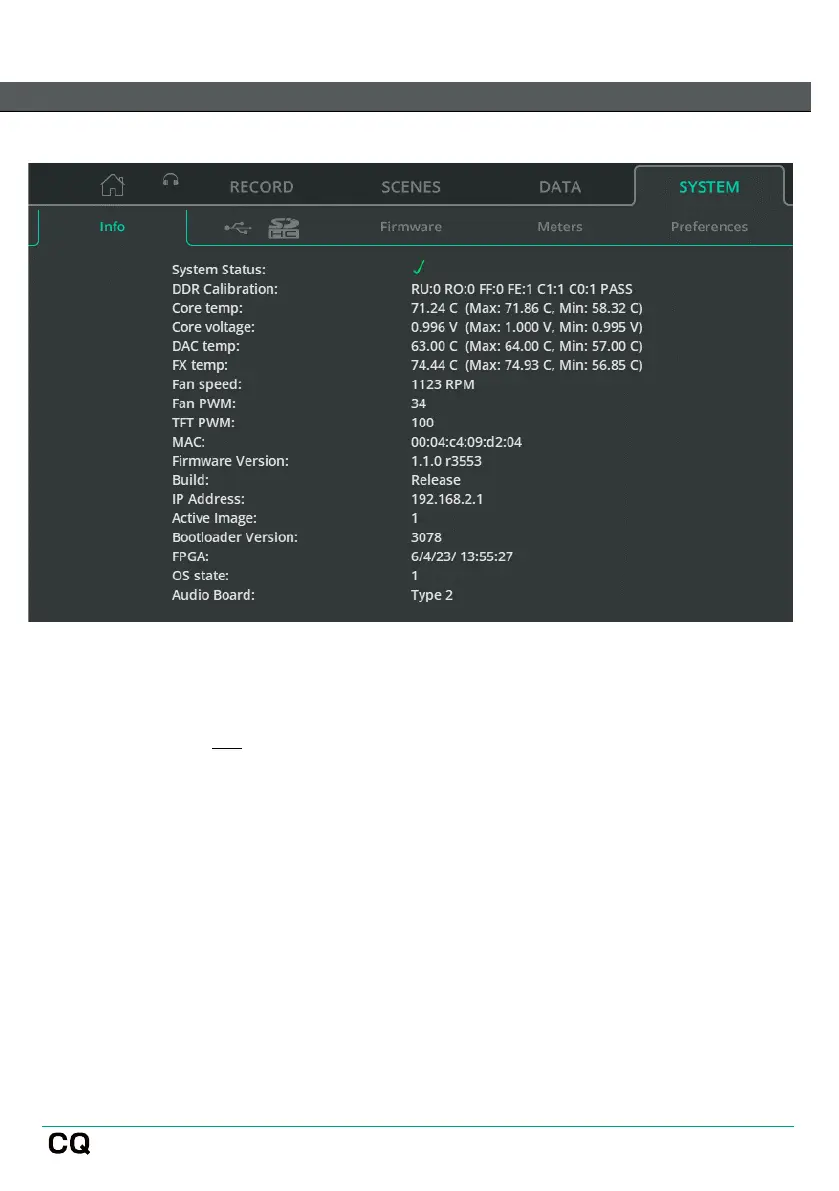

SYSTEM / Info
Displays diagnostic information about the unit.
Core temp, Core voltage, DAC temp and FX temp all include Max and Min values.
Note that these are not the maximum and minimum ranges of operation, but rather
the maximum and minimum values that have been recorded since the unit was last
powered on.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
