User Guide V1.1.0 Issue 1

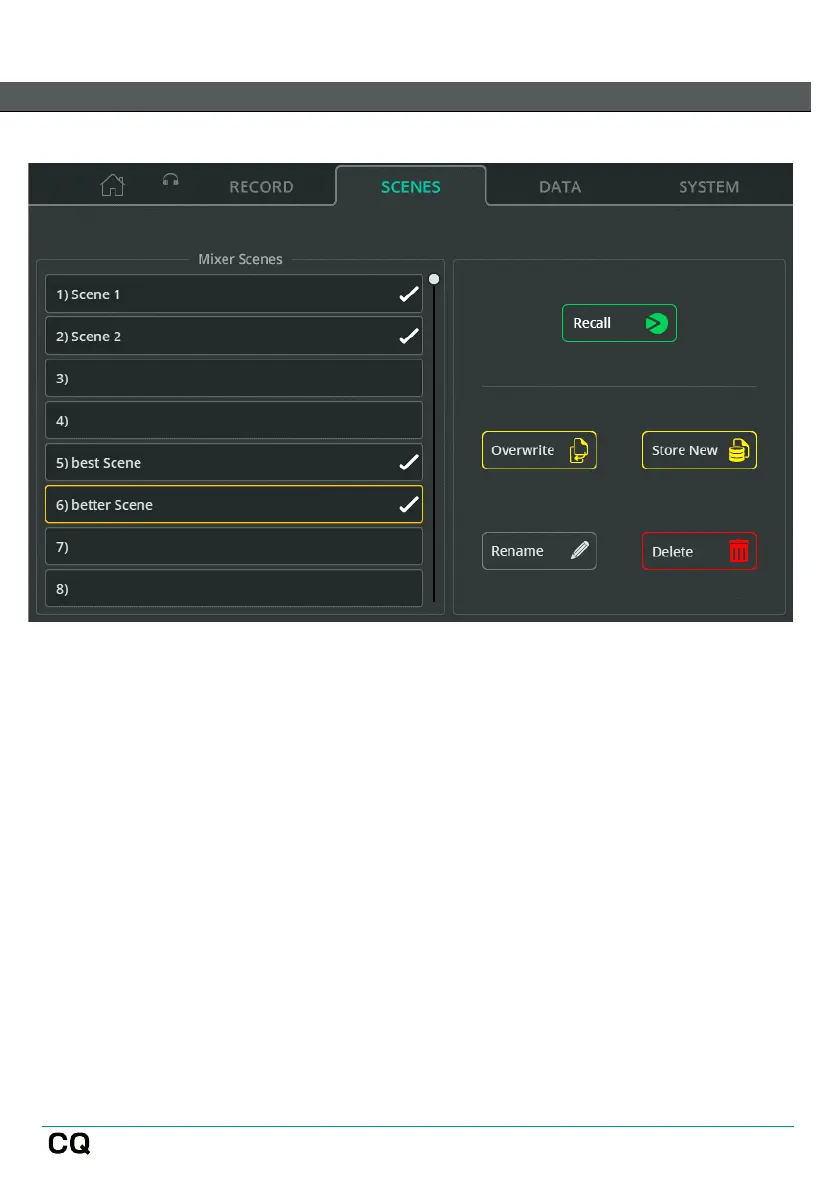

SCENES
Scenes are used to store and recall the mix state of the CQ including all processing
and send levels. 100 scene slots are available.
 More information can be found in the Shows, Scenes and Libraries section.
Recall – Replace the current state with the stored state.
Overwrite – Store the current state in the selected scene slot (over the top of a
previously stored state).
Store New – Store the current state in the selected scene slot.
Rename – Edit the name of the selected Scene.
Delete – Touch to delete the selected scene.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
