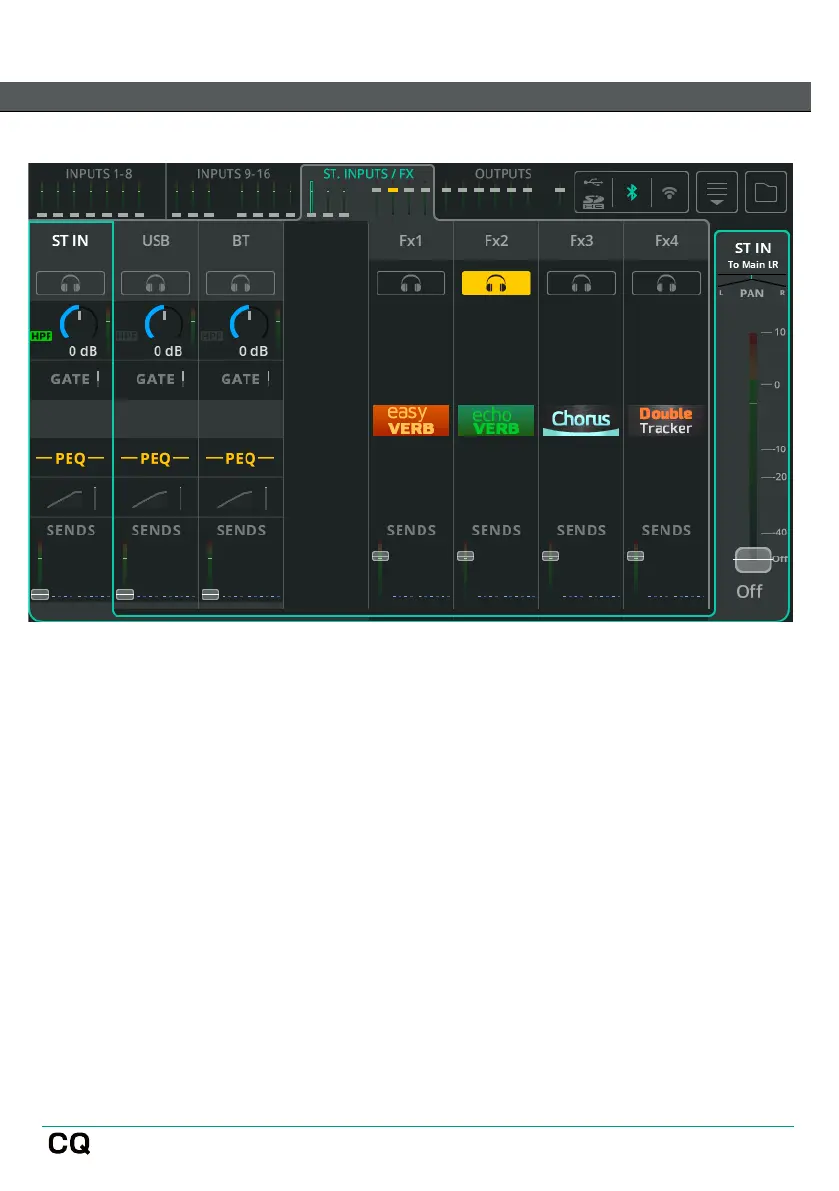

ST. INPUTS / FX (bank view)
This bank includes three (CQ-12T, CQ-18T) or four (CQ-20B) stereo inputs. These are
dedicated stereo channels for
• Stereo line level inputs
• Stereo USB channel, which can be used as a return from a DAW or for
playback of stereo audio from USB storage
• The Bluetooth audio input
They work in the same way as all other input channels and have all the same
processing options available.
Also in this bank are up to two (CQ-12T) or four (CQ-18T, CQ-20B) stereo FX
channels.
Use the SENDS section on these channels to choose where the wet/affected signal
from the FX unit is sent. For example, to hear reverb in a monitor, or cascade one FX
unit into another.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
