User Guide V1.1.0 Issue 1

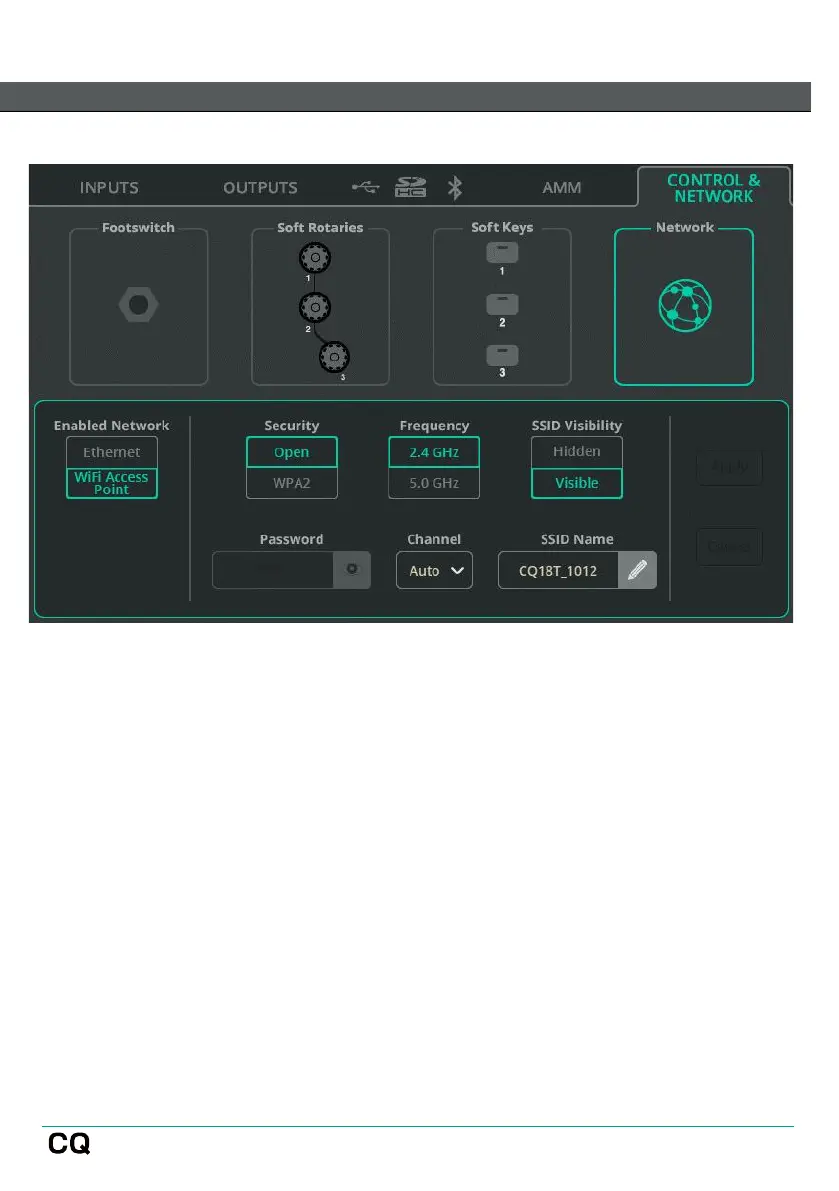

CONTROL & NETWORK / Network (WiFi) (CQ-18T, CQ_20B)
Enabled Network – Select Ethernet for wired connection through the Network
port. Select Wi-Fi Access Point for wireless connection using the integrated
access point of the unit (CQ-18T, CQ-20B).
Security – Select between an open access point or a WPA2 password protected
network.
Password – When WPA2 is selected, set a password here. The default password is
‘DefaultPassword’
Frequency – Choose between use of 2.4GHz or 5GHz frequency bands.
Channel – Select a channel (it is recommended to leave Auto set).
SSID Visibility – Choose whether the network name is broadcast openly.
SSID Name – Assign a custom name for the network. The default name is the CQ
model followed by the last 4 digits of the serial number.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
