ALLEN & HEATH CQ-12T User Manual

 66
User Guide V1.1.0 Issue 1

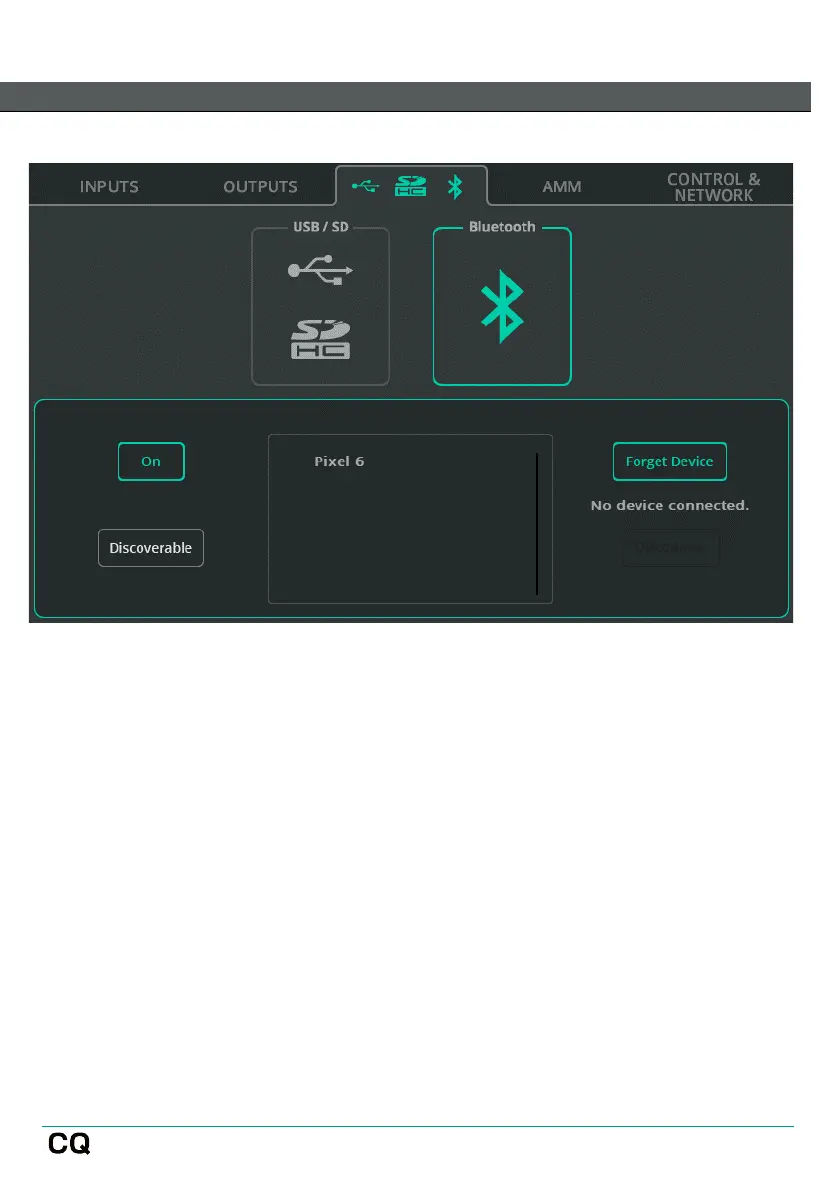

Digital Audio (Symbols) / Bluetooth
On/Off – Turn Bluetooth on or off.
Discoverable – Allow the CQ unit to be seen by other Bluetooth devices. Activate
this then add the CQ as a Bluetooth device to a phone, tablet, or computer.
Forget Device – Select a previously connected device from the list, then use this
to prevent it from connecting in future.
 Devices can always be connected again using the Discoverable button.
Disconnect – Terminate connection with the selected device.
 The CQ-12T requires that a PIN is used for connection. This is set as 1969 (the year
Allen & Heath was founded).

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
