User Guide V1.1.0 Issue 1
11. FX
CONTROL (Shared)

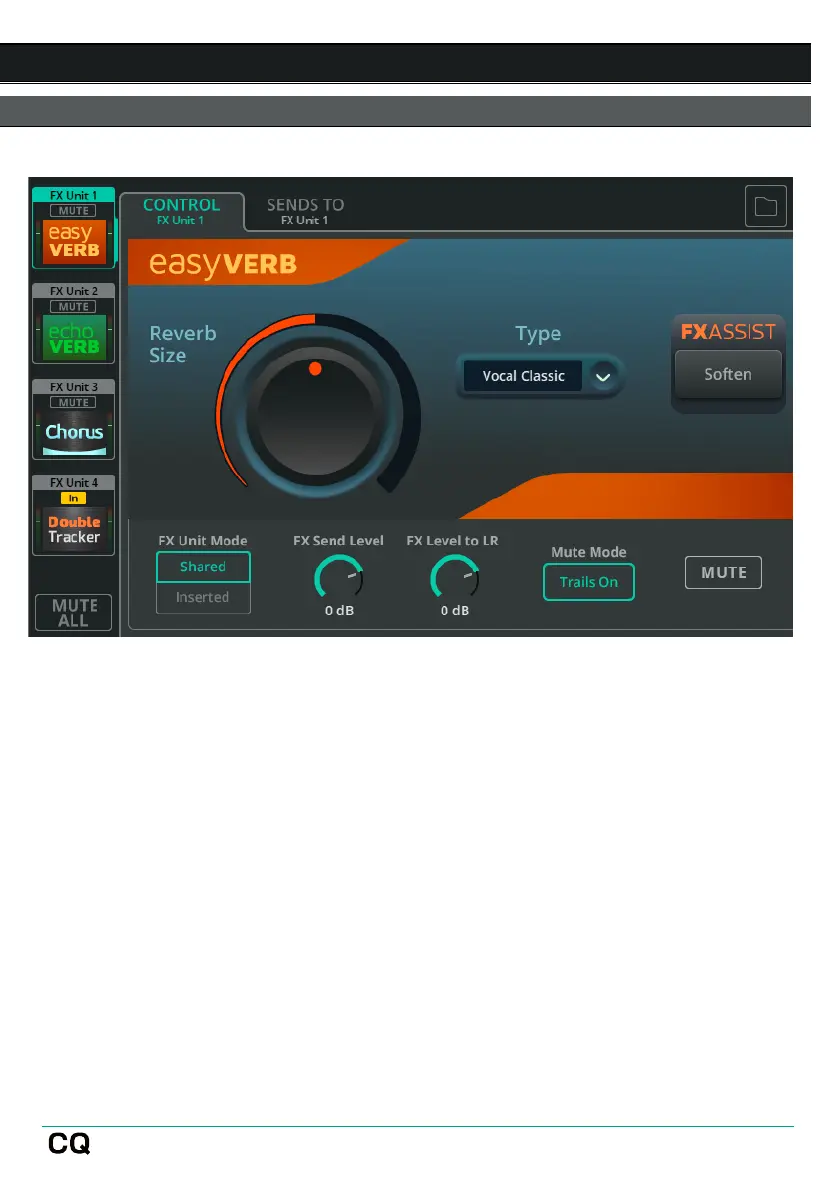

Select an FX unit from the left-hand side to adjust. FX model controls are shown in
the main section of the screen.
Library – Use the Library button in the top right to recall different FX models into
the selected FX Unit, or to store/recall user presets.
MUTE ALL – Mute all FX Units currently in Shared mode. If all Shared units are
currently muted, MUTE ALL can be used to unmute all. MUTE ALL does not affect
Inserted FX.
 A Soft Key or Footswitch can be assigned to MUTE ALL to make it easy to mute FX in
between songs.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
