ALLEN & HEATH CQ-12T User Manual

 90
User Guide V1.1.0 Issue 1

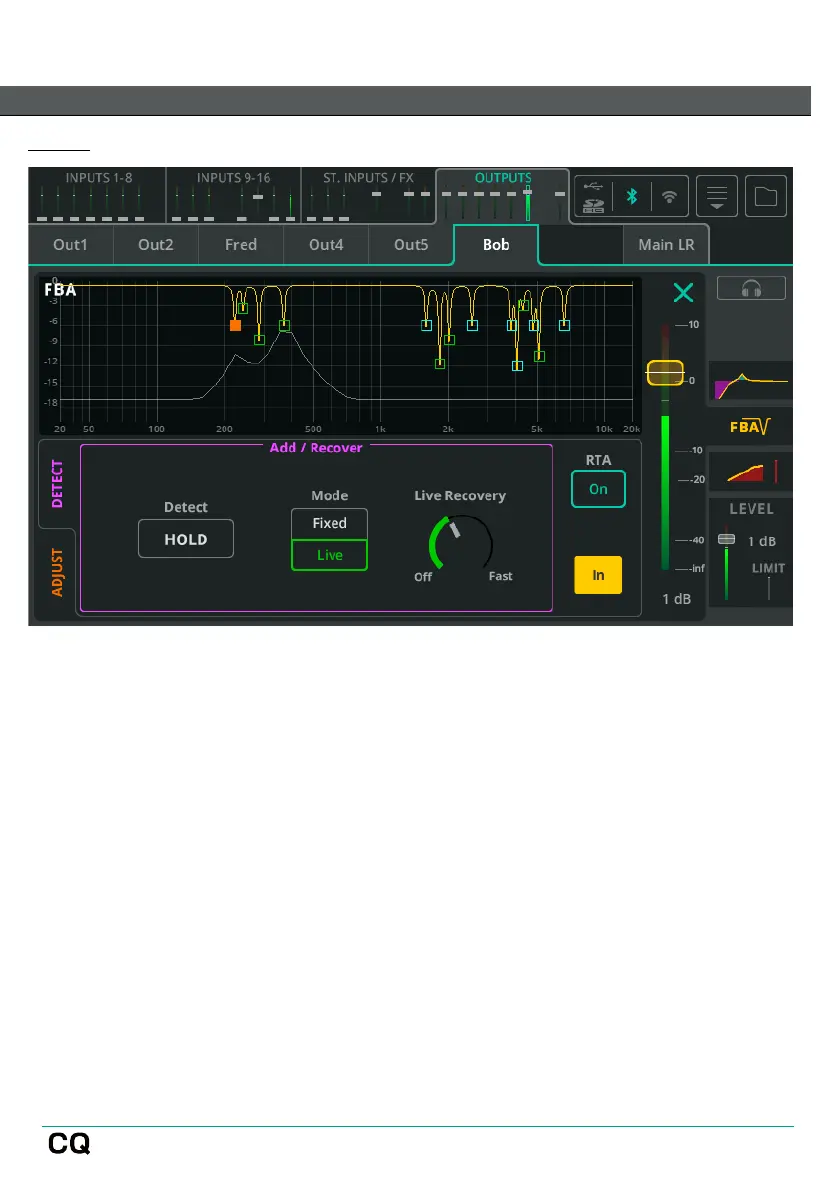

OUTPUT / FBA
Detect
The Feedback Assistant detects feedback and applies narrow filters to prevent it.
Detect – Disable the ‘HOLD’ box to start detecting feedback frequencies; Enable
the ‘HOLD’ box to pause feedback frequency detection.
Mode – Select whether the next filter to be added (when feedback is detected) will
be in Fixed or Live mode.
Live Recovery – Adjust the speed at which Live filters are currently recovering.
Can be set to ‘Off’ to temporarily freeze live filters.
RTA – Enable this option to see a Real Time Analyser in the FBA graph.
In/Out – Select to enable or disable the Feedback Assistant.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
