Adjust

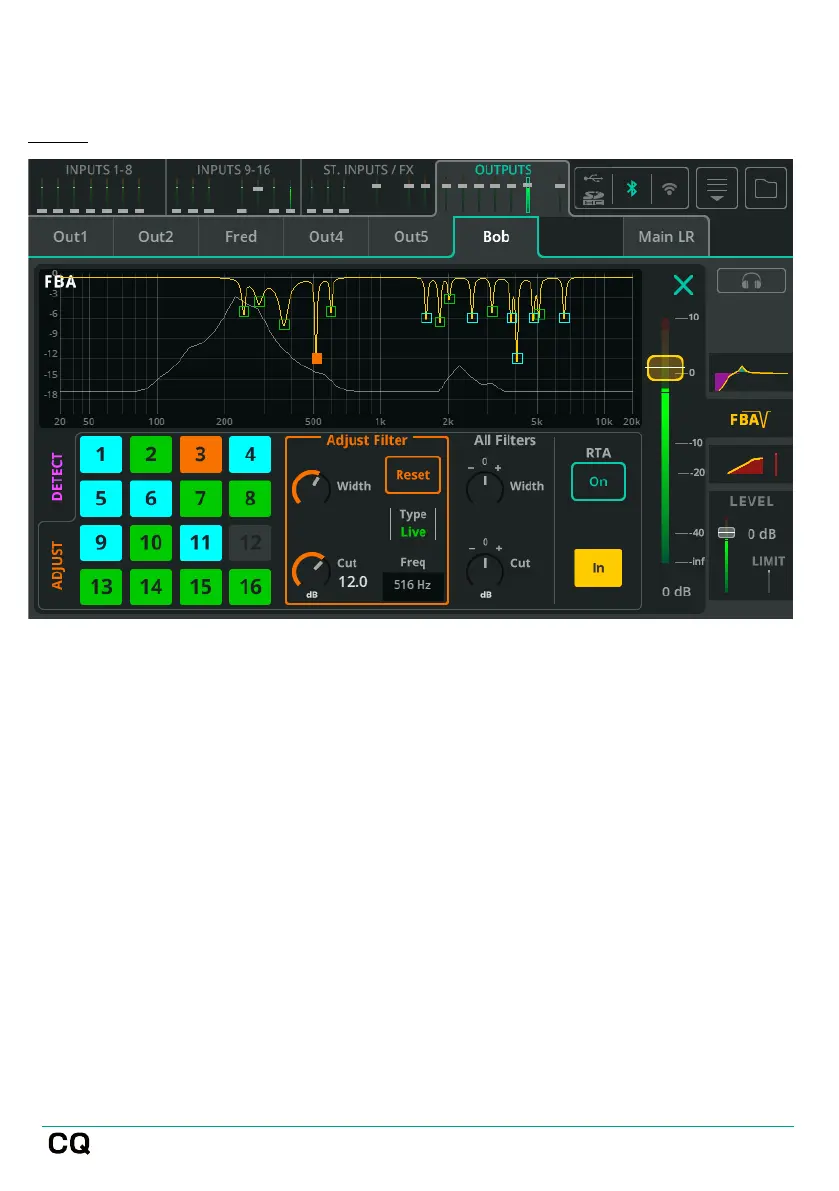

Each box on the left represents one of the 16 total filters.
Blue – Fixed mode filters.
Green – Live mode filters.
Orange – Currently selected filter.
Touch a box or a point on the graph to select a filter for adjustment.
Adjust Filter – Make width and cut adjustments to the selected filter. Select
‘Reset’ to remove the filter and make it available for use by the detector.
All Filters – Adjust width and cut for all active filters at once.
 To reset all filters, use the reset option from the dropdown menu at the top right of
the screen.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
