10. FADER
Sends to Main LR

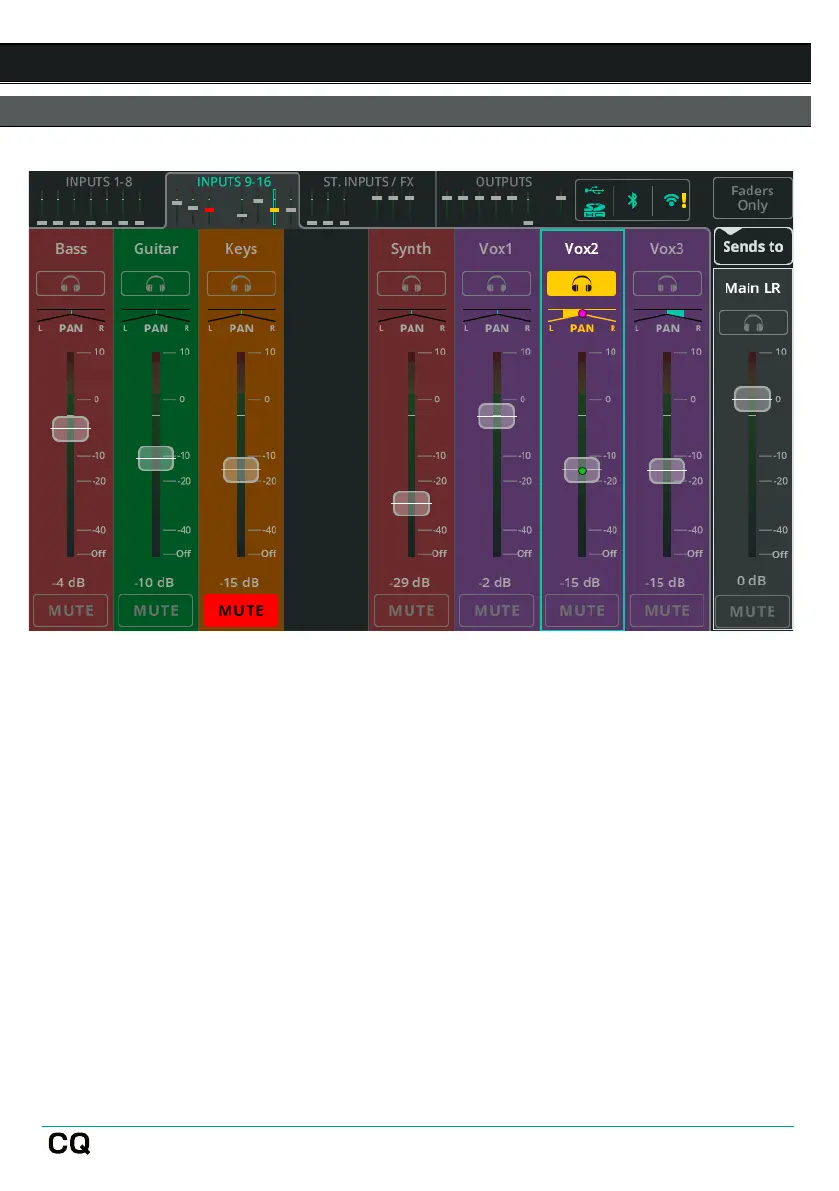

The Fader screen displays up to eight channels at a time. Use the mini fader tabs
at the top (touchscreen) or bottom left (CQ-MixPad) to switch between the 4 banks
of channels. Use the Faders Only button at the top right to either show channel
Listen, Pan and Mute controls, or longer faders with no controls.
Pan – Position the signal in the stereo image from left to right.
Level – Touch and drag (multiple) faders to adjust signal level or select a fader and
use the Touchscreen rotary to adjust (CQ-12T, CQ-18T).
 Only FX units in shared mode can be ‘Sent to’ MainLR, an Output or another FX Unit.
 Outputs cannot be sent to other Outputs, so their fader always controls their output
level.
Mute –Touch Mute to prevent flow of signal from the channel to any output or FX
unit.
 Muted channels are indicated with a red fader cap on the mini faders at the top
(touchscreen) or bottom left (CQ-MixPad).

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
