INPUT / Gate

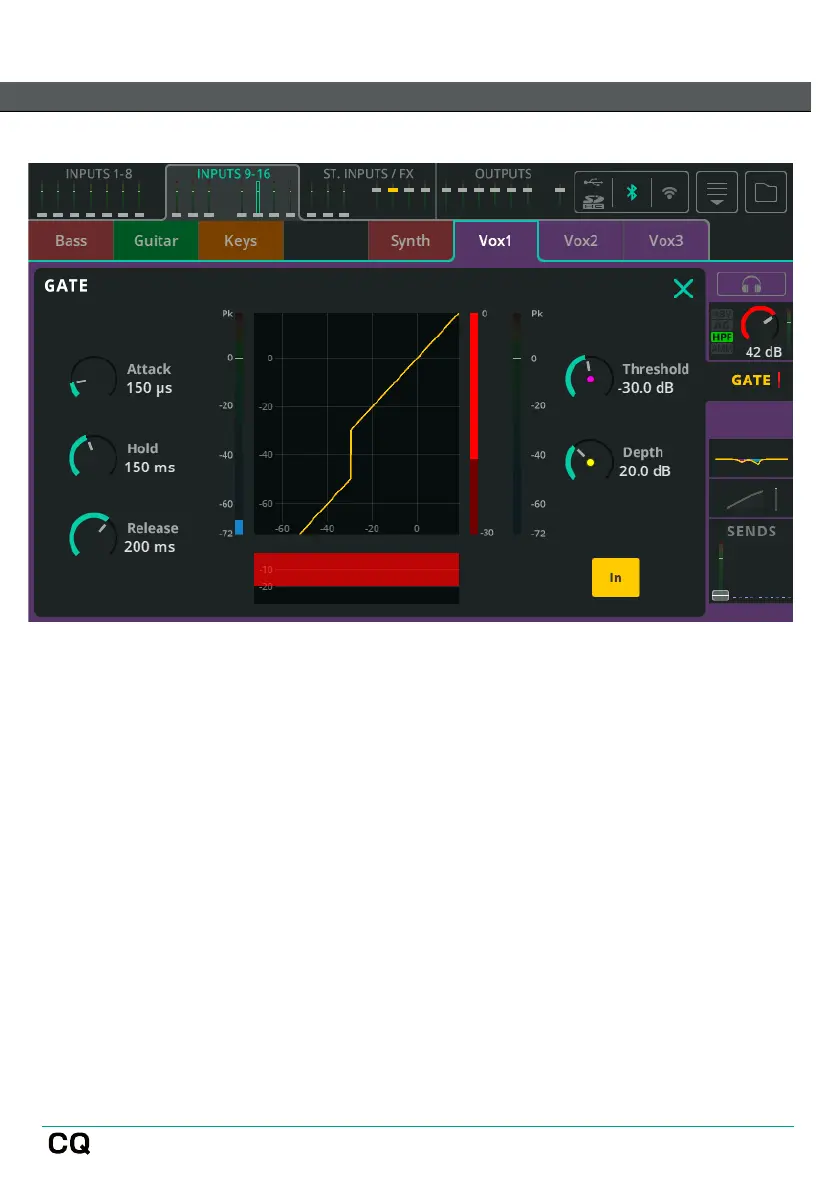

A Gate allows wanted signal through and attenuates unwanted signal. It has many
uses including removal of hum from an idle instrument or avoiding hearing the
snare drum through a tom microphone when only the snare is being played.
Attack – Adjust time it takes for the Gate to open once signal has reached
threshold.
Hold – Adjust time the Gate remains open after signal has dropped below
threshold.
Release – Adjust time it takes for the Gate to fully close once signal has fallen
under the threshold and hold time has expired.
Threshold – Adjust the level at which the Gate is triggered to open.
Depth – Adjust the amount the signal is reduced by when the gate is fully closed.
In/Out – Enable or disable the Gate.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
