INPUT / PEQ

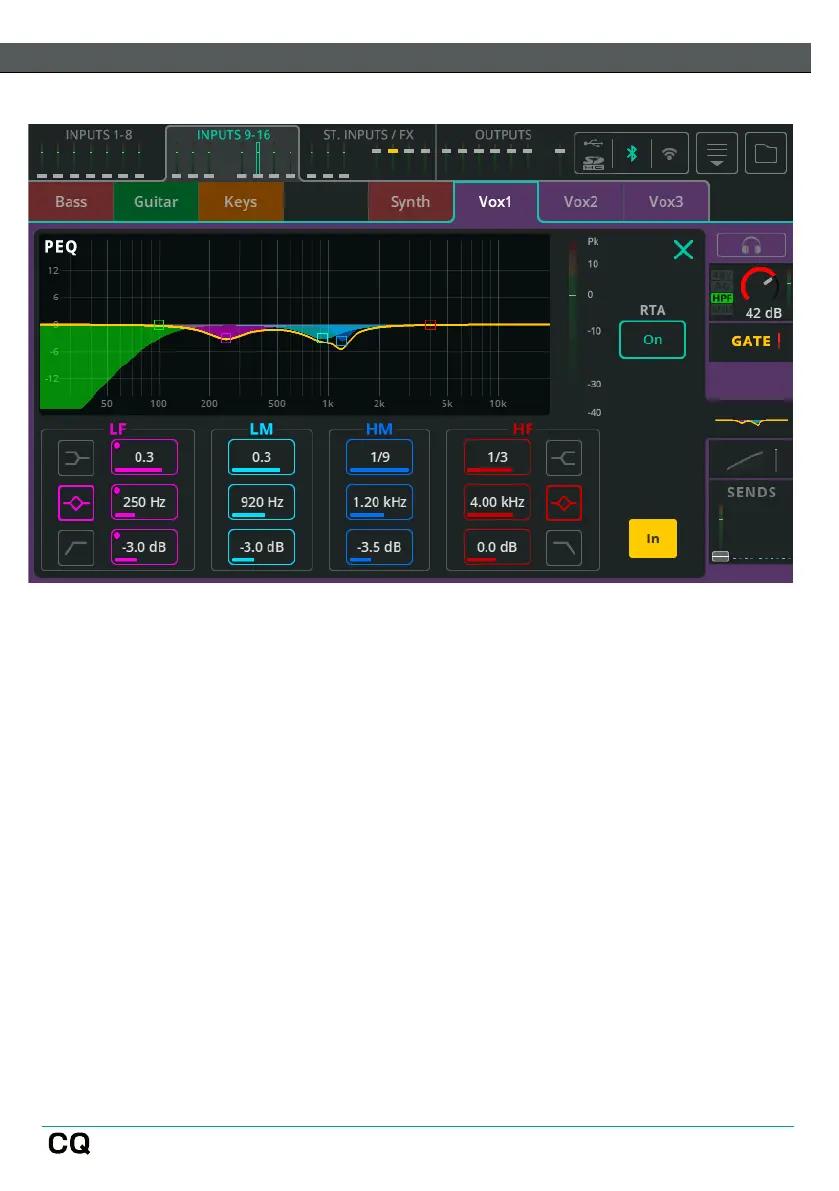

The 4-band Parametric Equaliser enables adjustments to the tone of the signal by
cutting or boosting around different frequencies.
Type – LF and HF bands include options for Shelf, Bell or HPF/LPF.
Width – Adjust the amount that frequencies around the centre frequency are
affected.
Frequency – Select the centre frequency for adjustment.
Gain – Cut or boost the selected centre frequency by up to +/- 15dB.
RTA – Display Real Time Analyser behind PEQ.
In/Out – Enable or disable the PEQ.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
