Sends to an Output

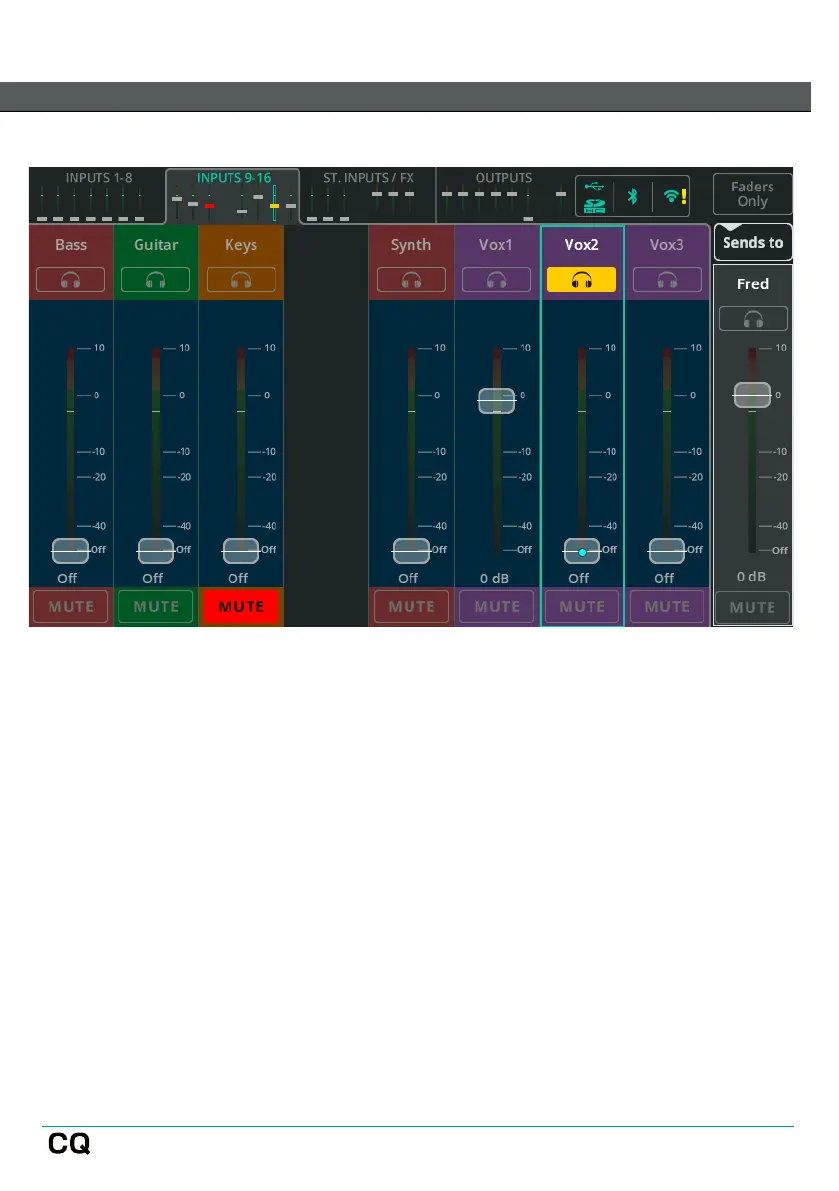

Touch Sends to and select an output to show all send levels to that output on the
fader for each input and FX channel.
With an Output other than Main LR selected, the fader background is coloured blue
to indicate that fader positions are showing the ‘Sends to’ an output other than
Main LR.
 Only FX units in shared mode can be ‘Sent to’ MainLR, an Output or another FX Unit.
 Outputs cannot be sent to other Outputs, so their fader always controls their output
level.
When sending to a stereo output, pan controls are available, though if Follow Main
LR Pan is On for the selected output, the pan value is only displayed and cannot be
adjusted.
The RHS fader is used to control the overall send, or output level. This is a
duplicate of the output channel fader in the OUTPUTS bank view.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
