OUTPUTS

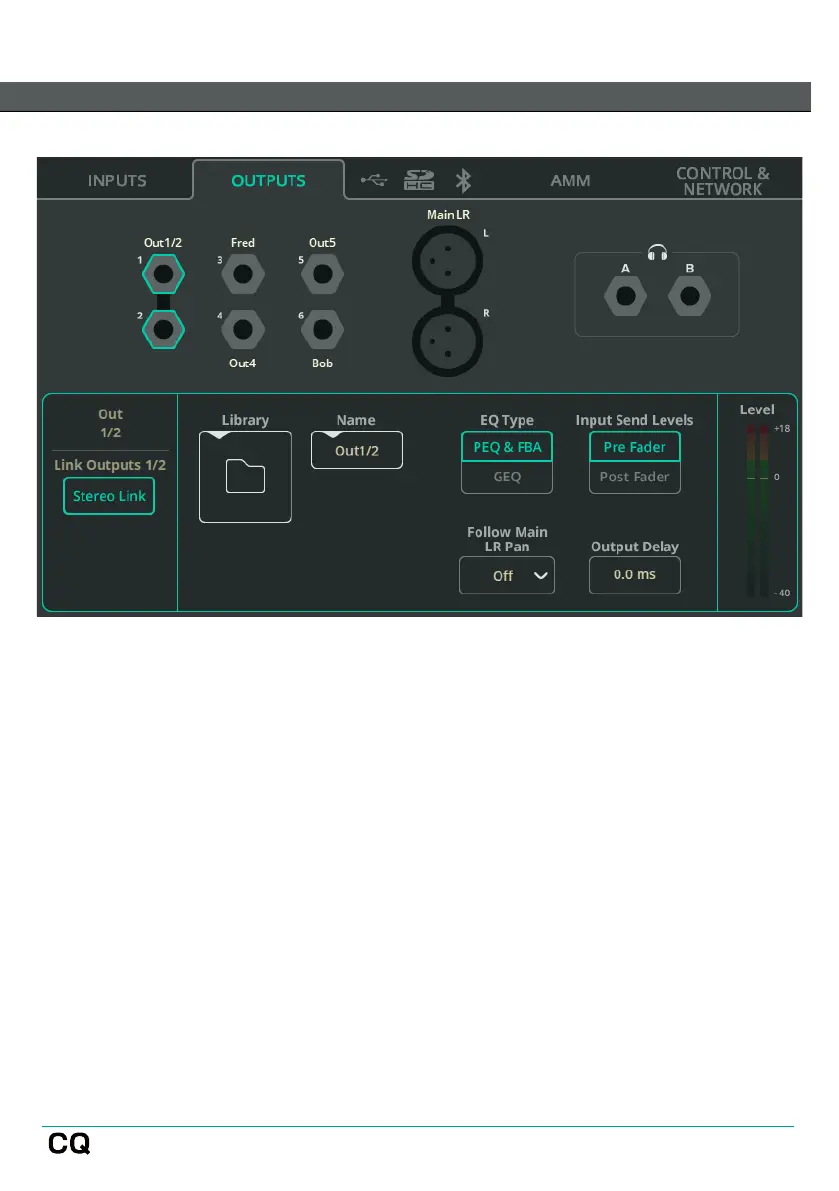

Output sockets are shown at the top of the screen, matching the hardware layout.
Touch a socket to select it and display settings for that output/channel at the
bottom.
Stereo Link (Out 1-6 only) – Use odd/even pairs of outputs as a single stereo
channel (odd=left, even=right). When active, all settings and processing apply to
both.
Library – Opens the channel library to store or recall all channel settings, including
Name.
EQ Type – Select either Parametric EQ plus Feedback Assistant or a Graphic EQ
for each output.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
