SYSTEM / Meters
Chromatic meters are displayed in the CONFIG screen, on Quick Channels and
there is one on the CQ-20B which can be set for use with any input or output
channel.
They use colour and brightness to express signal level in a smaller space and can
also show much lower levels than standard meters (from -72dB), so a source can
often be seen before being heard. They can be customised, either to show colours
that are easy for the user to distinguish between, or to show when particular signal
levels are reached.

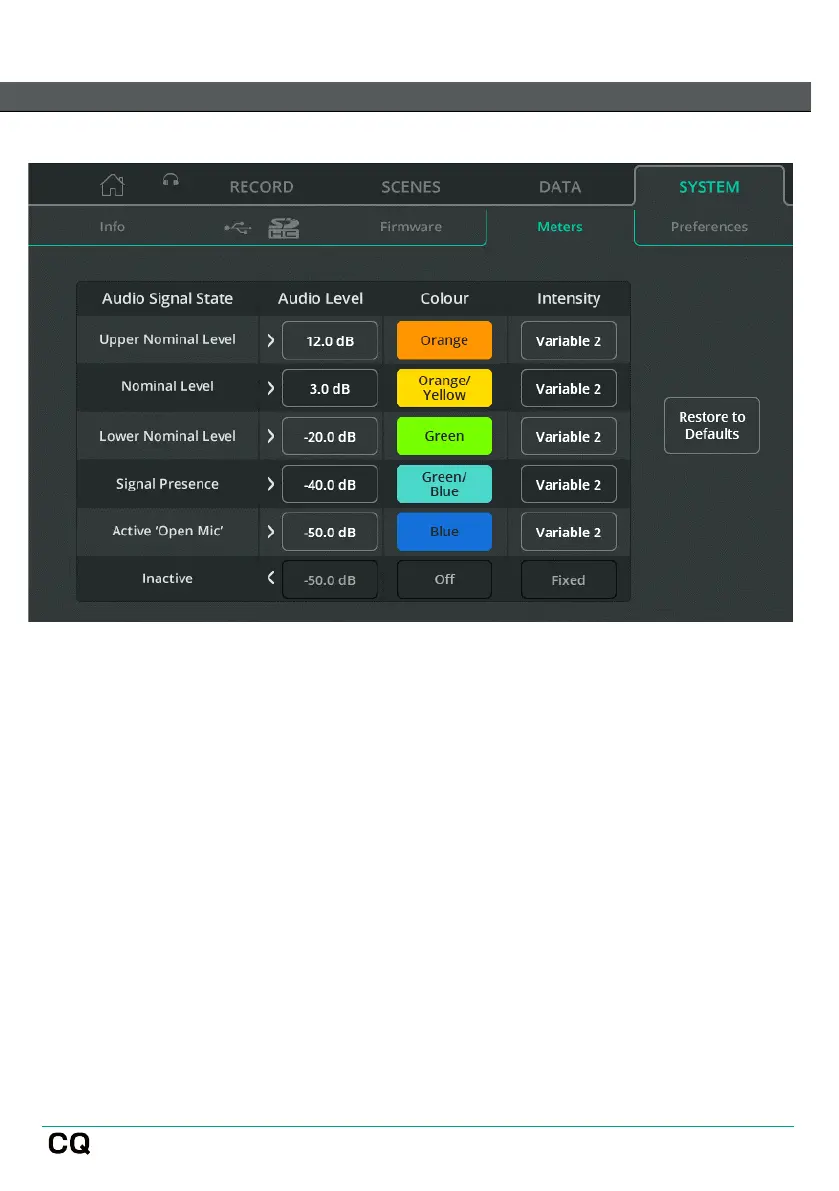

Audio Level – Adjust the Audio Level for each Audio Signal State.
Colour – Assign a colour to each Audio Signal State.
Intensity – Select between a Fixed or Variable intensity.
Fixed = Meter switches instantly between states.
Variable 1 = Meter changes close to the endpoints of its range.
Variable 2 = Meter changes across its whole range

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
