ALLEN & HEATH CQ-12T User Manual

 95
User Guide V1.1.0 Issue 1

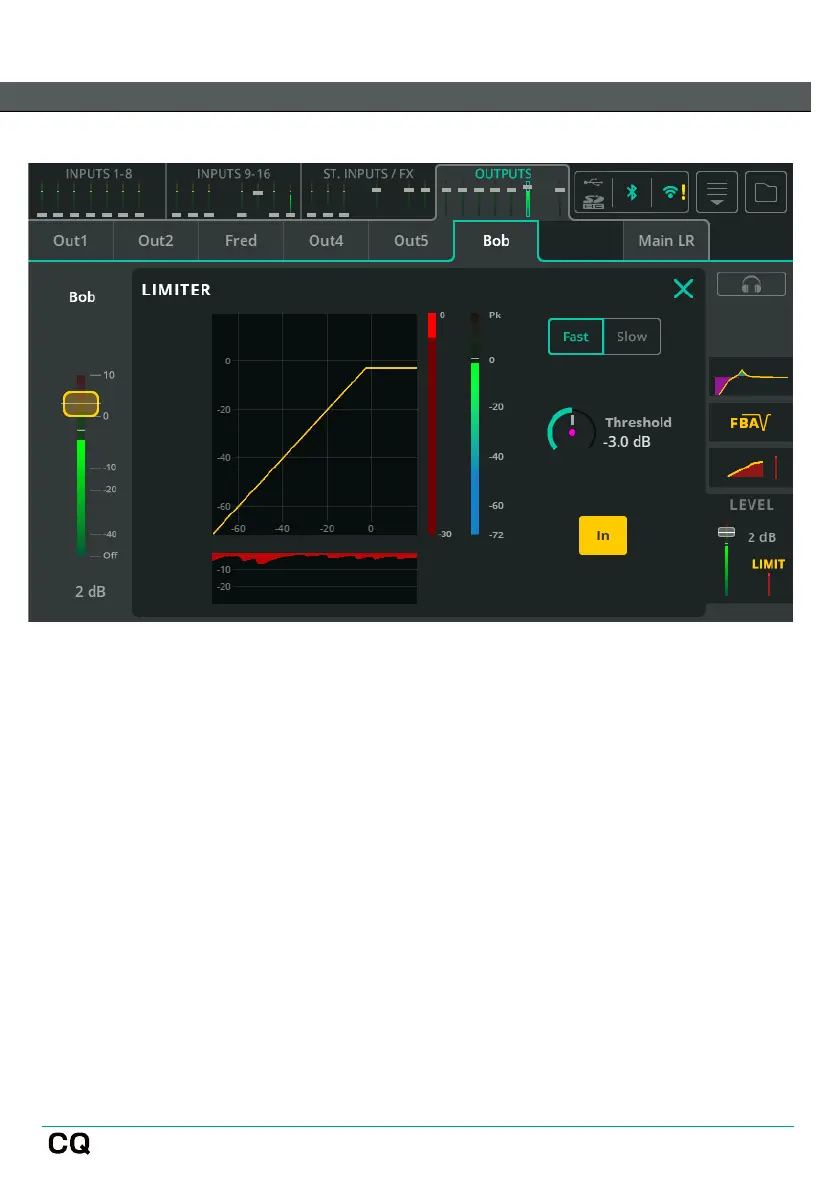

OUTPUT / LEVEL and LIMITER
A Limiter works like a very fast compressor with an infinite:1 compression ratio and
limits the output level to whatever is set by the threshold.
In CQ, the limiter is applied post fader, meaning that it can be set for use on an
output for monitoring and prevent the output signal rising above a set level, even if
the output level fader is adjusted by a musician using CQ4You for example.
Fast/Slow – Select the speed of the Limiter on the signal.
Threshold – Set the level when the limiter will be triggered (effectively maximum
output level).
In/Out – Enable or disable the Limiter.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
