ALLEN & HEATH CQ-12T User Manual

 93
User Guide V1.1.0 Issue 1

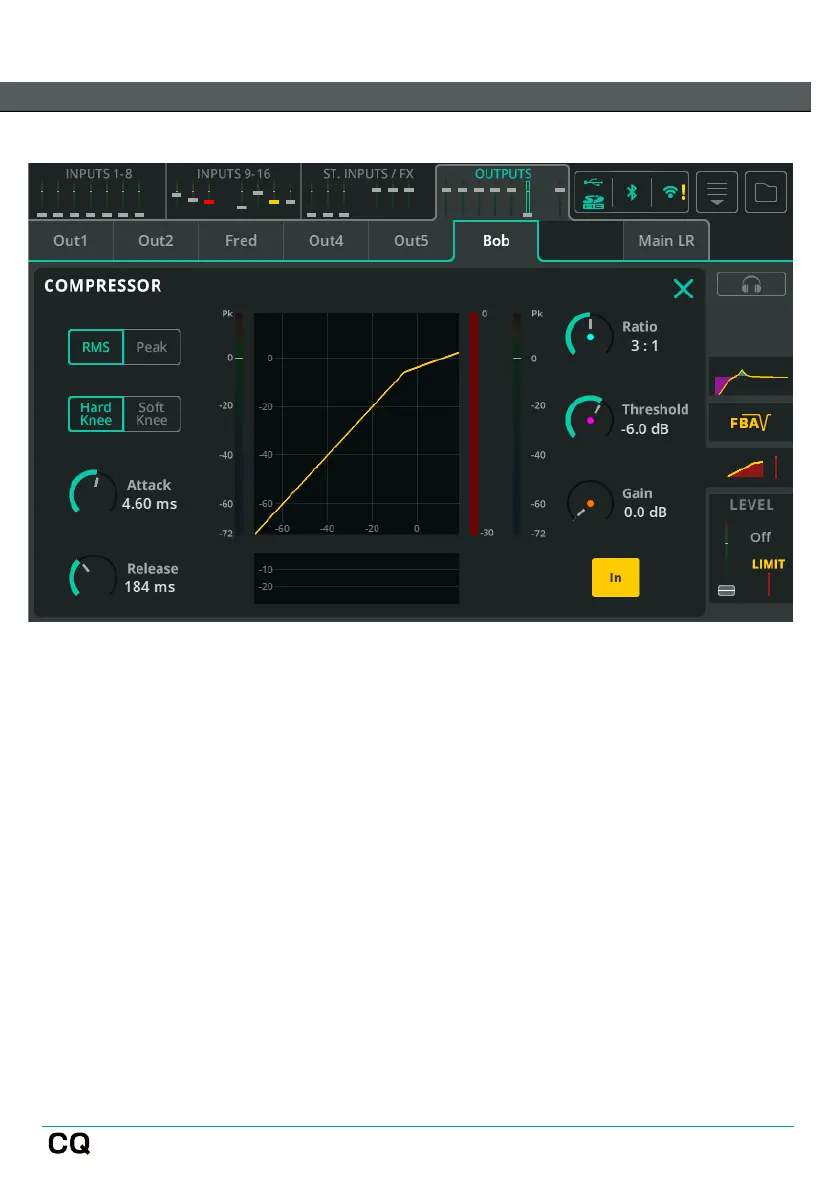

OUTPUT / Compressor
A Compressor is used to control and reduce the dynamic range of the signal.
RMS/Peak – Compression is either triggered by RMS (short average) or Peak
(instant) signal level.
Hard/Soft Knee – With a hard knee, compression begins to take effect only when
the threshold is reached. With a soft knee, the compression begins to take effect
earlier but in a more gradual way.
Attack – Adjust the time it takes for compression to take effect once the signal
has reached the threshold. Set a longer time to allow transients through and
compress only the body of the sound, set a shorter time to flatten the signal and
tame peaks.
Release – Adjust the time that it takes for the compressor to stop compressing
after signal has fallen below the threshold.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
