ALLEN & HEATH CQ-12T User Manual

 79
User Guide V1.1.0 Issue 1

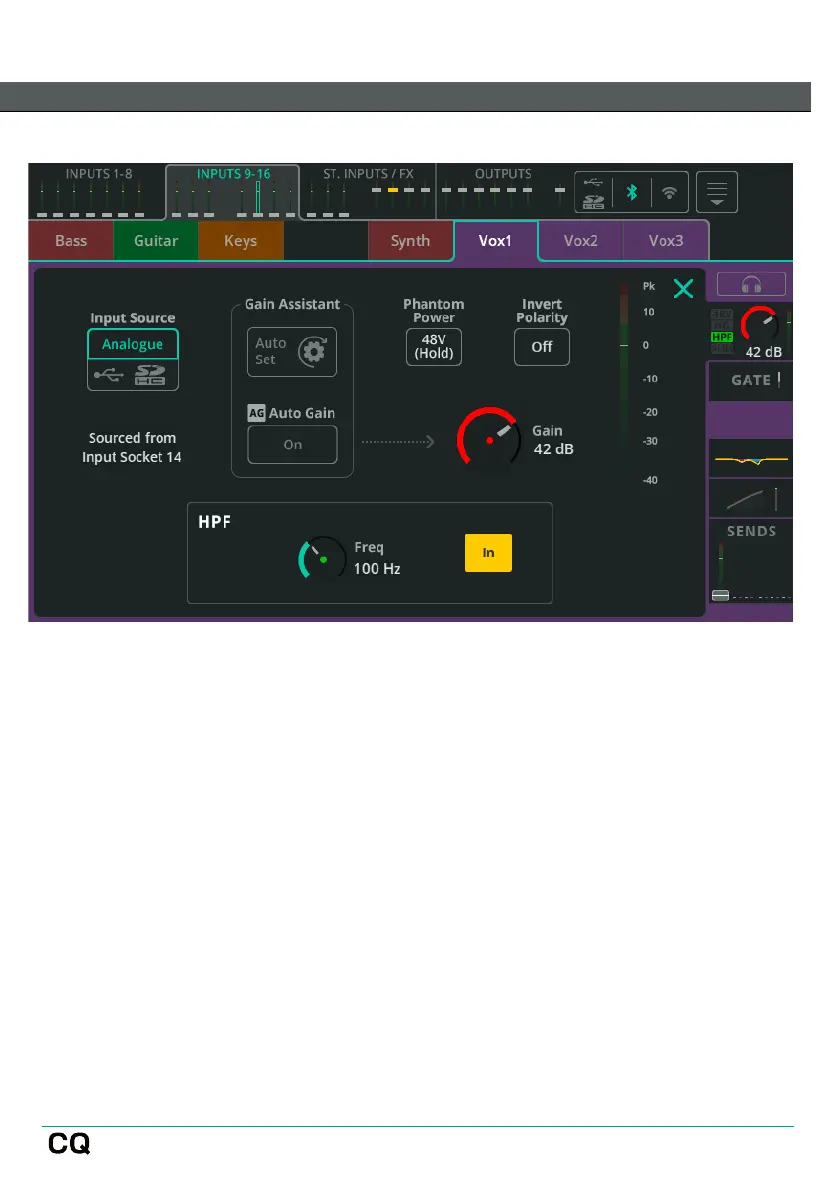

INPUT / Preamp
Input Source – Select Analogue to source the channel from the analogue sockets
or select USB/SD to source from USB drive and SD card.
The current source for this input channel is displayed below.
 When playing back from SD the source will be SD, otherwise it will be USB-B.
Gain Assistant – Touch Auto Set and generate noise in the microphone or with the
connected instrument/device to automatically set preamp gain based on the level
of signal received at the input. Switch on Auto Gain to automatically reduce the
preamp gain and avoid clipping if high levels are detected.
Phantom Power – Touch and hold to activate +48V on the XLR input (Required for
condenser microphones and active DI boxes).
 Phantom Power is only provided via an XLR connection. It is not sent to the ¼” TRS
Jack connection of a Combi socket.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
