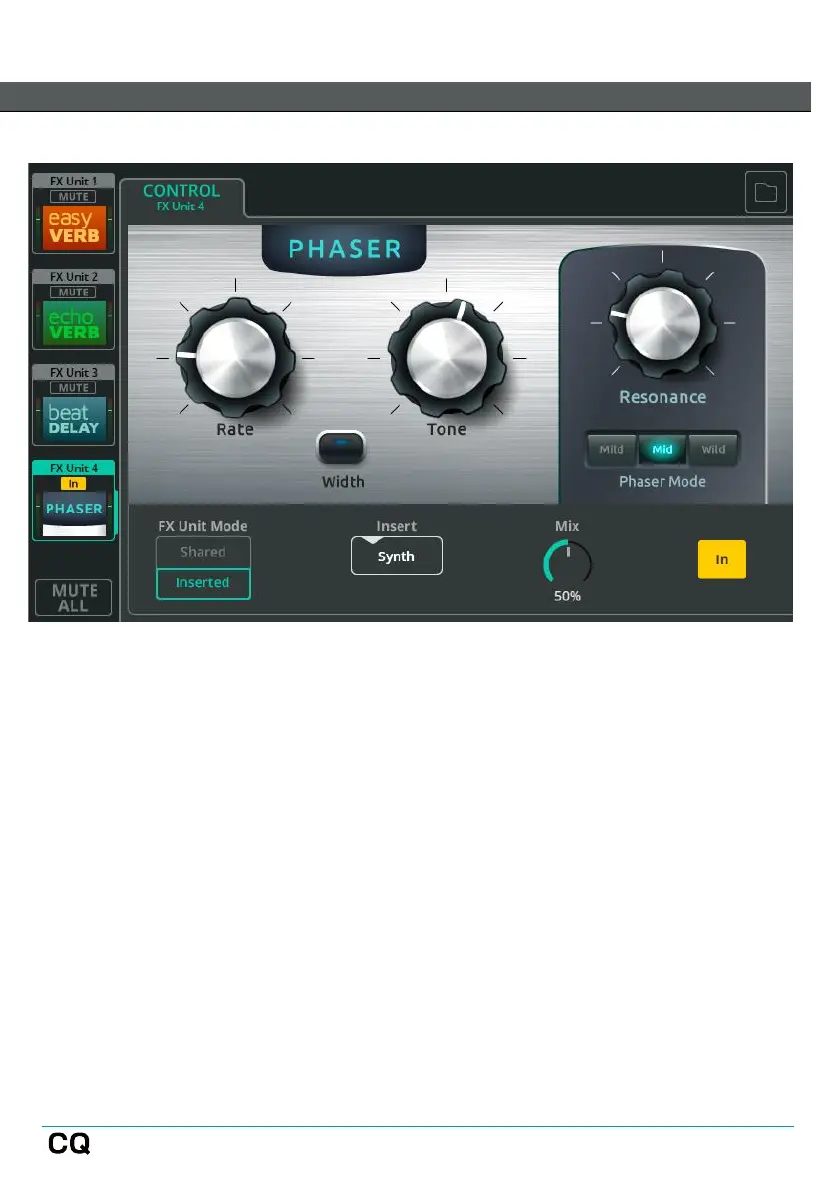

FX Model – Phaser
The Phaser combines the original signal and a copy of the signal with phase
shifting applied at different frequencies. This causes some frequencies to cancel
out at the same time as others are reinforced.
Rate – Adjust the speed of the frequency sweep.
Tone – Adjust to select the centre frequency the phaser will work around.
Width – Select to offset left and right outputs and create a wider sound.
 Width has no effect if Phaser is inserted into a mono channel.
Resonance – Adjust how prominent the reinforced frequency is.
Phaser Mode – Set the how wide a range of frequencies the phaser moves
through.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
