Send multiple inputs to one Output using the FADER screen
1.

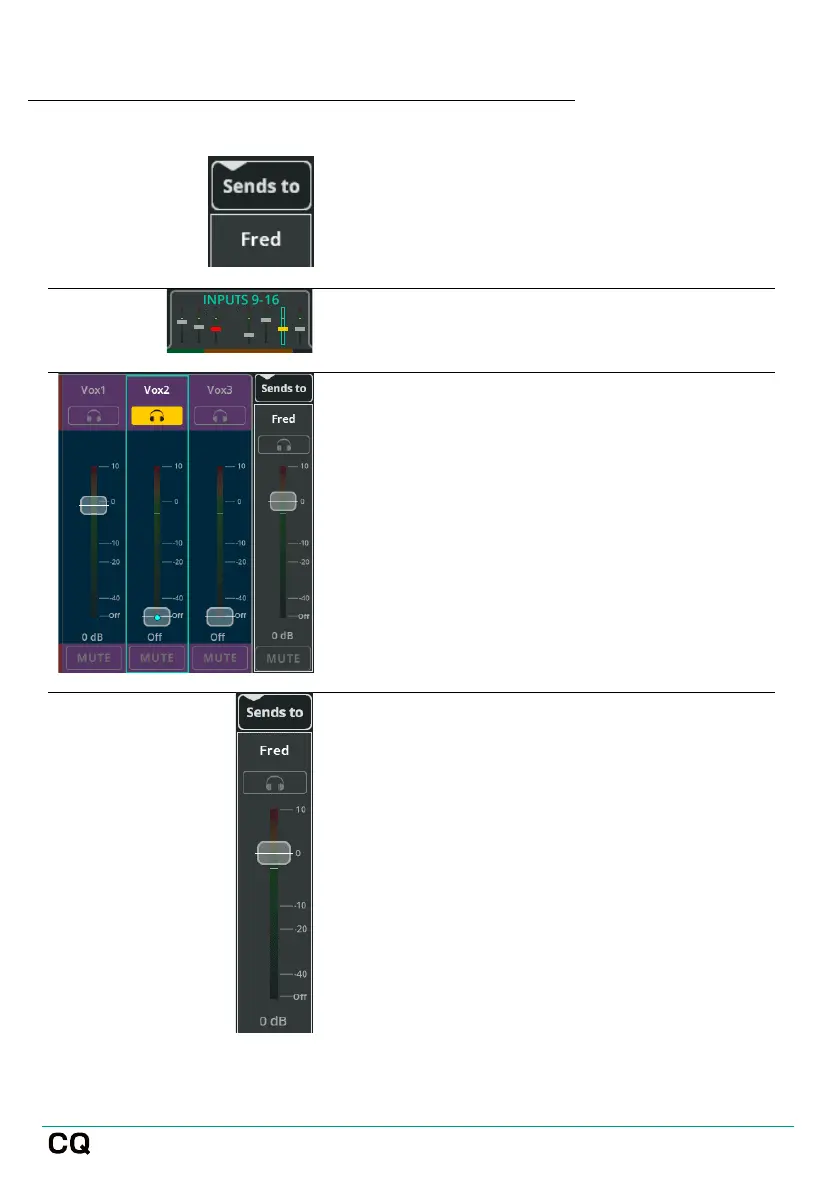

Go to the FADER screen and use the
Sends to button, above the fader on the
right-hand side, to select an output to
send signal to.
2.
Use the tabs at the top of the screen to
navigate between banks of Inputs.
3.
Raise the fader for any Input in order to
send signal from that input channel to the
selected Output.
Touch/Click and drag faders, or select the
fader and use the Touchscreen rotary
control (CQ-12T, CQ-18T).
4
Adjust the (overall) Output level using the
fader on the right-hand side.
 Repeat steps 2 to 4 for different inputs
and different outputs to set the mix for
each.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
