ALLEN & HEATH CQ-12T User Manual

 51
User Guide V1.1.0 Issue 1
4.

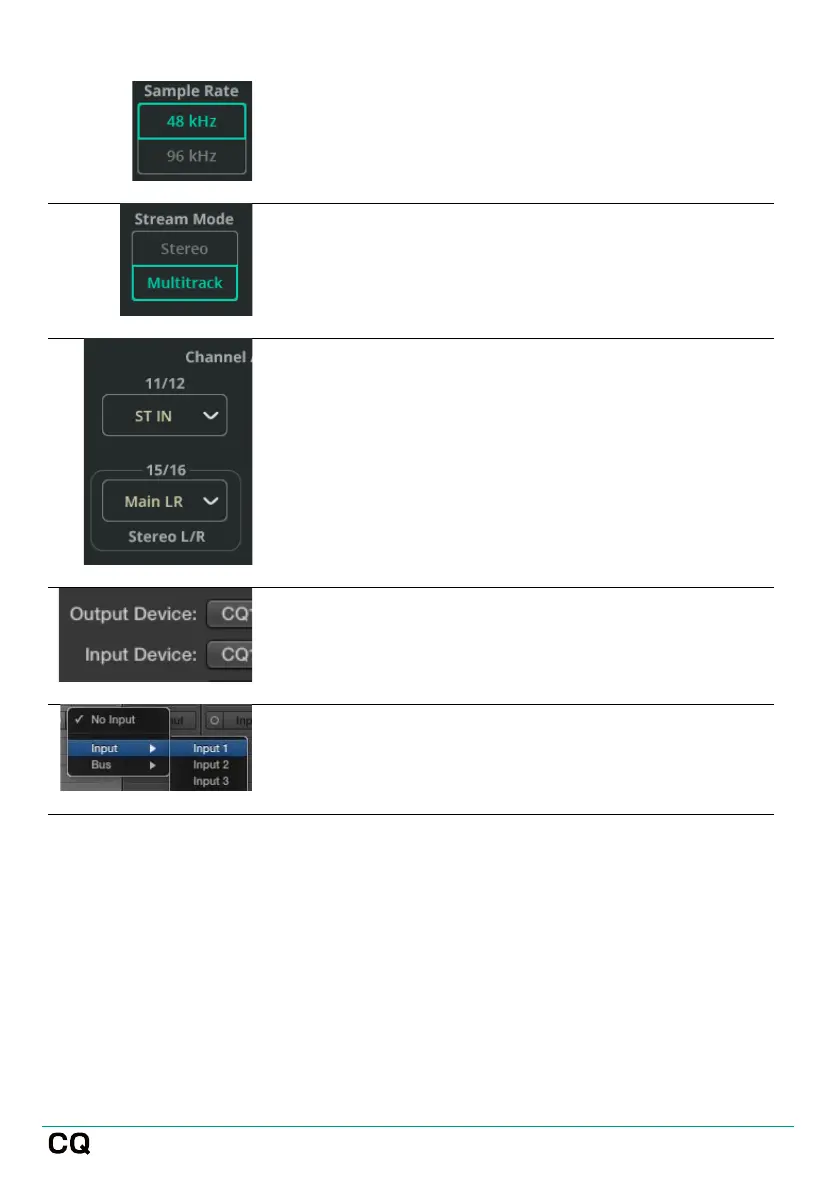

Select the Sample Rate. This should match
the Sample Rate of the DAW session.
5.
Select Multitrack for Stream Mode to send
and receive all channels individually.
6.
Assign outputs to the final pairs of channels
as required. These can be stereo inputs, FX or
outputs.
All mono (or stereo linked) channels are
always patched to their matching channel
number. e.g. CQ input 7 is being sent to USB
channel 7.
6.
In the DAW audio preferences, select the CQ
as the Audio Input Device or equivalent.
7.
Assign the Input source of each track in the
DAW to correspond to channels being sent
from the CQ.
8.
Done! Signal will now be available for
recording and processing on each of the DAW
tracks.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
