ALLEN & HEATH CQ-12T User Manual

 55
User Guide V1.1.0 Issue 1

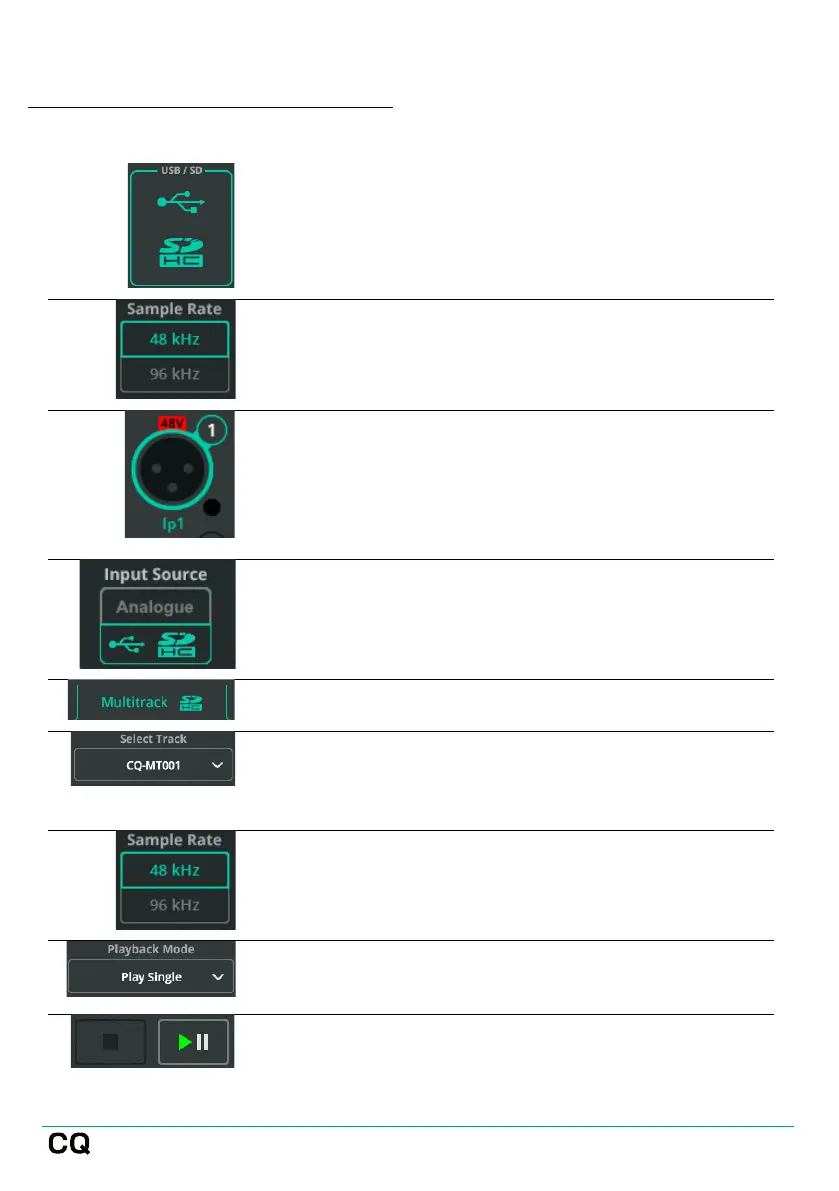

To Playback Multitrack from an SD Card
1.
Go to CONFIG / Digital Audio (Symbols) /
USB/SD to set up the connection.
2.
Select the Sample Rate. This should match the
Sample Rate of recording.
3.
On the CQ, go to CONFIG / INPUTS and select
the channels to use for playback. Use Multi
Select to select multiple inputs at the same time.
Recorded audio will play back to the channel it
was recorded from.
4.
Switch Input Source to USB/SD (Symbols).
5.
Go to HOME / RECORD / Multitrack
6.
To select a stored multitrack file from the SD
Card, touch the Select Track drop-down menu at
the left bottom corner of the screen.
7.
If a recording cannot be seen, try a different
sample rate (steps 1 and 2).
8.
Use Playback Mode to select whether some, all
or none of the recordings will be repeated.
9.
Use the Transport bar to control playback.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
