Chapter 4 Bulletin 290E/291E/294E Programmable Parameters

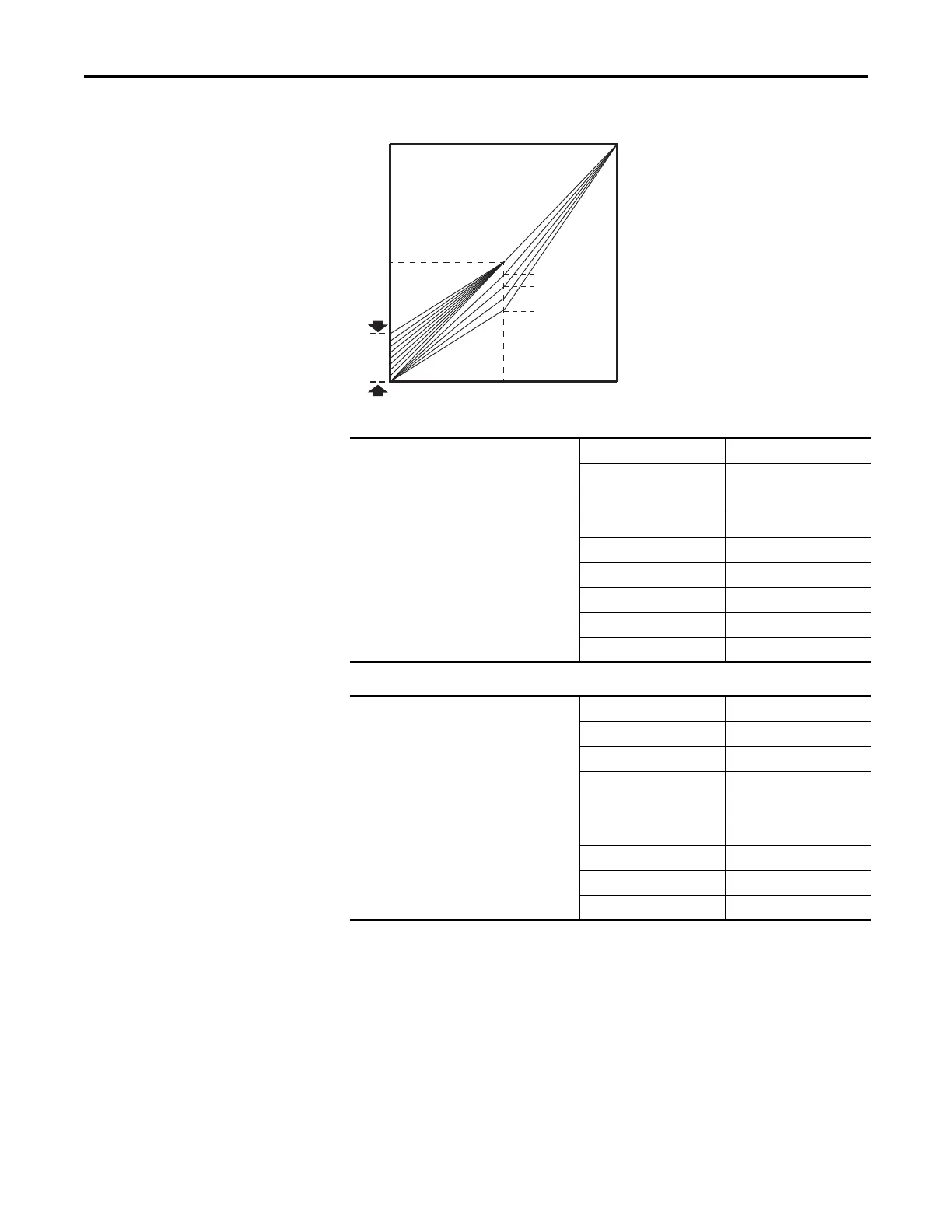

Figure 56 - Boost Select
MaximumVoltage
Sets the highest voltage the drive will output.
Parameter Number 87
Related Parameters —
Access Rule GET/SET
Data Type UINT
Group Advanced Config.
Units V AC
Minimum Value 20V AC
Maximum Value 460V AC
Default Value 2V AC
MotorNamePlateFLA
Set to the motor nameplate Full Load Amps.
For 0.5 Hp units – Min = 0; Max = 3.0; Default = 1.5
For 1.0 Hp units – Min = 0; Max = 5.0; Default = 2.5
For 2.0Hp units – Min = 0; Max = 8.4; Default = 3.6
Parameter Number 88
Related Parameters —
Access Rule GET/SET
Data Type UINT
Group Advanced Config.
Units x.x Amps
Minimum Value 0.0
Maximum Value Hp Dependent
Default Value Hp Dependent
1/2 [Motor NP Volts]
%P28 [Motor NP Volts]
%P29 [Motor NP Hertz]
[Motor NP Hertz]
1/2
0 50 100
100
50
Settings
5-14
4
3
2
1
