Allen-Bradley ArmorStart 294E User Manual

42 Rockwell Automation Publication 290E-UM001B-EN-P - June 2012
Chapter 2 Installation and Wiring

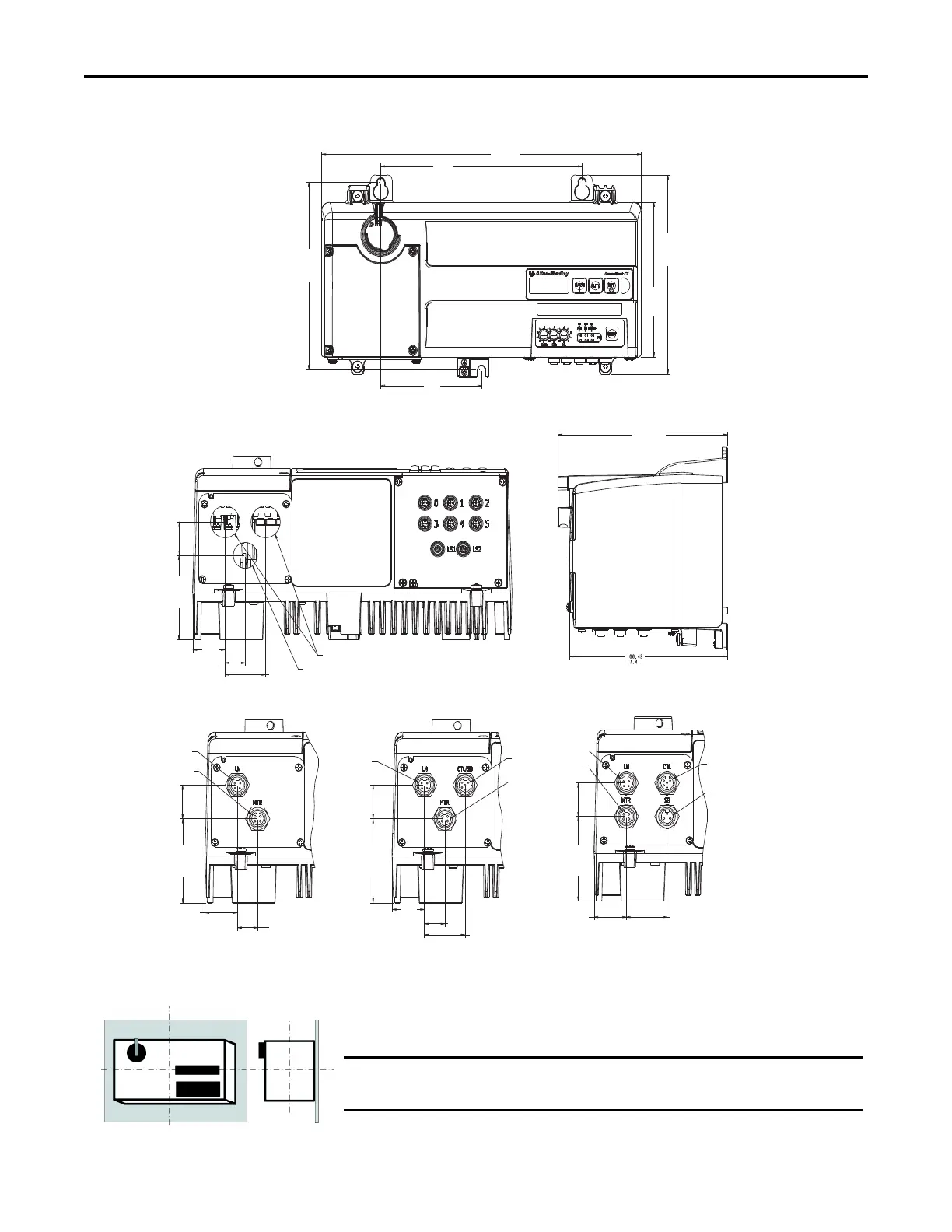

Figure 17 - Dimensions for Bulletin 294E
Front View
Conduit Gland Entrance - Bottom View
Right Side View
ArmorConnect Internal Power
Supply Gland Plate (optional)
ArmorConnect Media Gland
Entrance (optional)
ArmorConnect Gland Entrance
with Source Brake (optional)
1 in. conduit opening
0.75 in. conduit opening
Control
Motor
Motor
Line
Control
Motor
Line
Source Brake
Line
206,43
(8.1)
120
(4.7)
202,27
(8.0)
219,32
(8.6)
170
(6.7)
381
(15.0)
240
(9.4)
37
(1.5)
92,9
(3.7)
38.49
(1.5)
24,25
(1.0)
48,5
(1.9)
37
(1.5)
92.9
(3.7)
38,61
(1.5)
24,25
(1.0)
24,25
(1.0)
92,9
(3.7)
92,9
(3.7)
37
(1.5)
37
(1.5)
38,55
(1.5)
38,55
(1.5)
48,5
(1.9)
48,5
(1.9)
IMPORTANT
For proper heat dissipation and product operation, mount the ArmorStart LT in the
vertical orientation as shown.
