146 Rockwell Automation Publication 1756-RM003N-EN-P - October 2011
Chapter 3 Timer and Counter Instructions (TON, TOF, RTO, TONR, TOFR, RTOR, CTU, CTD, CTUD, RES)
Description: The CTD instruction is typically used with a CTU instruction that references
the same counter structure.
When enabled and the .CD bit is cleared, the CTD instruction decrements the
counter by one. When enabled and the .CD bit is set, or when disabled, the CTD
instruction retains its .ACC value.
The accumulated value continues decrementing, even after the .DN bit is set. To
clear the accumulated value, use a RES instruction that references the counter
structure or write 0 to the accumulated value.
Arithmetic Status Flags: Not affected
Fault Conditions: None

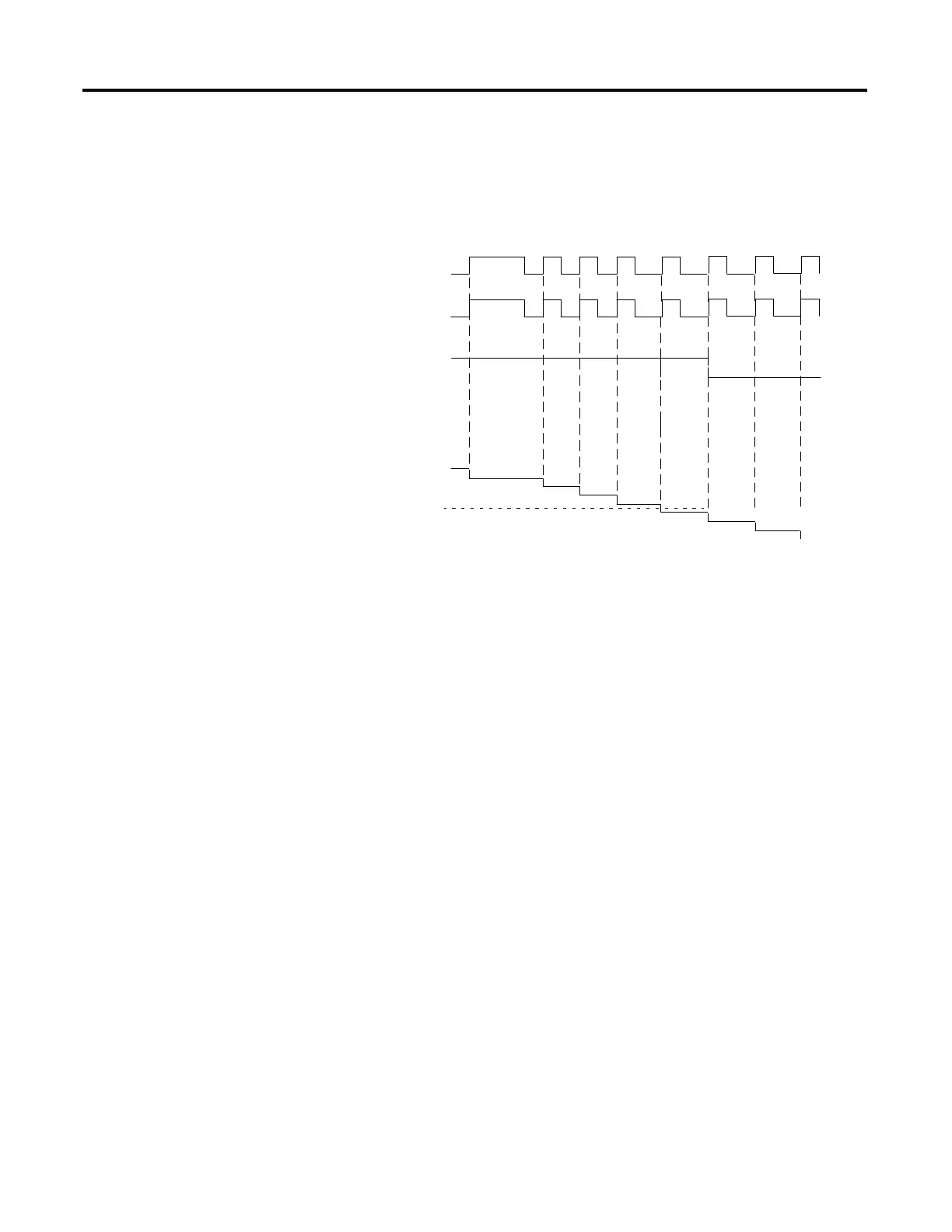

Rung-condition-in
Count-down Enable Bit (.CD)
Count-down Done Bit (.DN)
Counter Accumulated Value (.ACC)
Preset
16637
