Allen-Bradley Logix5000 Reference Manual

Rockwell Automation Publication 1756-RM003N-EN-P - October 2011 447
Sequencer Instructions (SQI, SQO, SQL) Chapter 10

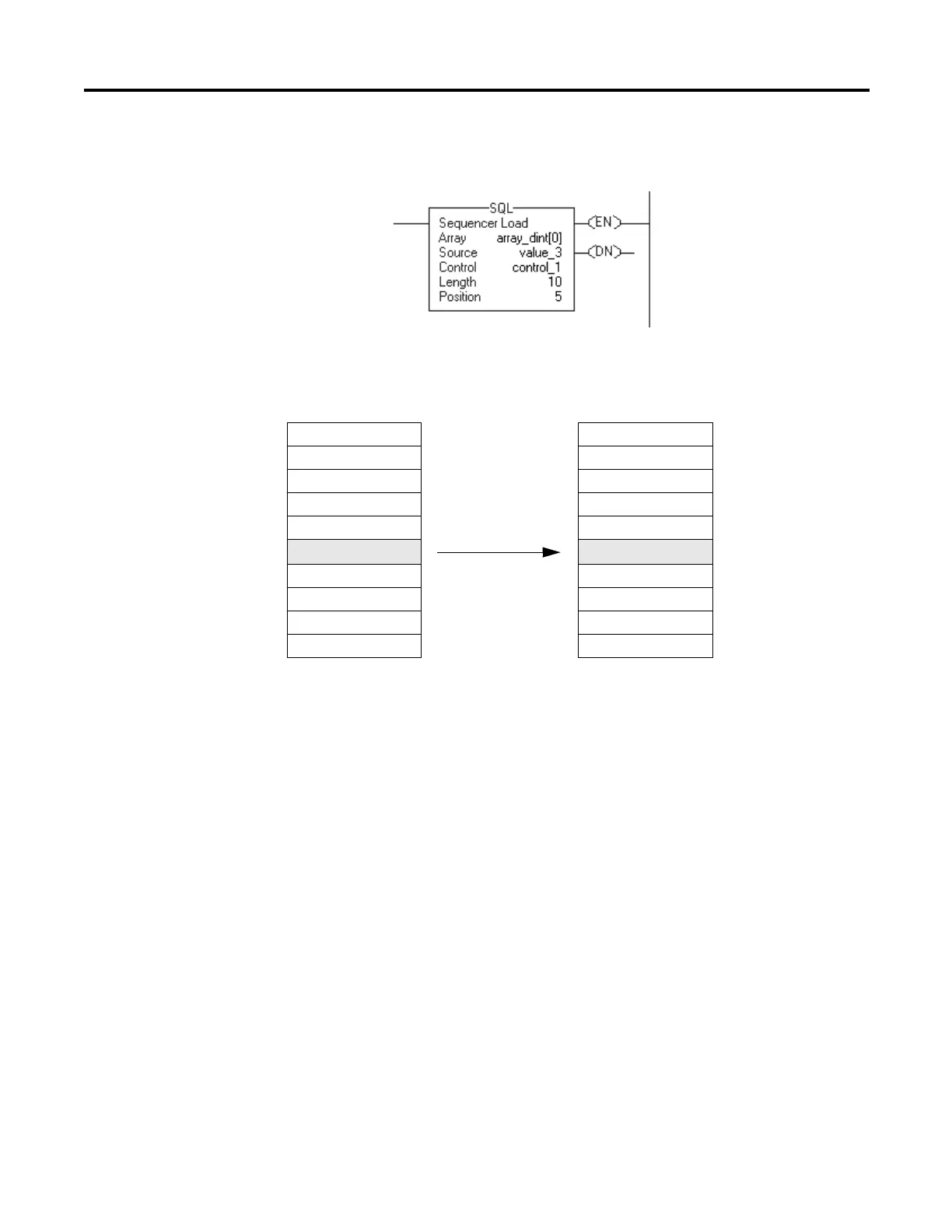

Example: When enabled, the SQL instruction loads value_3 into the next position in the
sequencer array, which is array_dint[5] in this example.
Before load After load
array_dint[0] 00000 00000
11111 11111
22222 22222
33333 control_1.pos = 5 33333
44444 value_3 = 55555 44444
array_dint[5]
00000 55555
00000 00000 control_1.pos = 6
00000 00000
00000 00000
00000 00000
