1734-AENT Quick Start D-3
Enter Adapter Properties

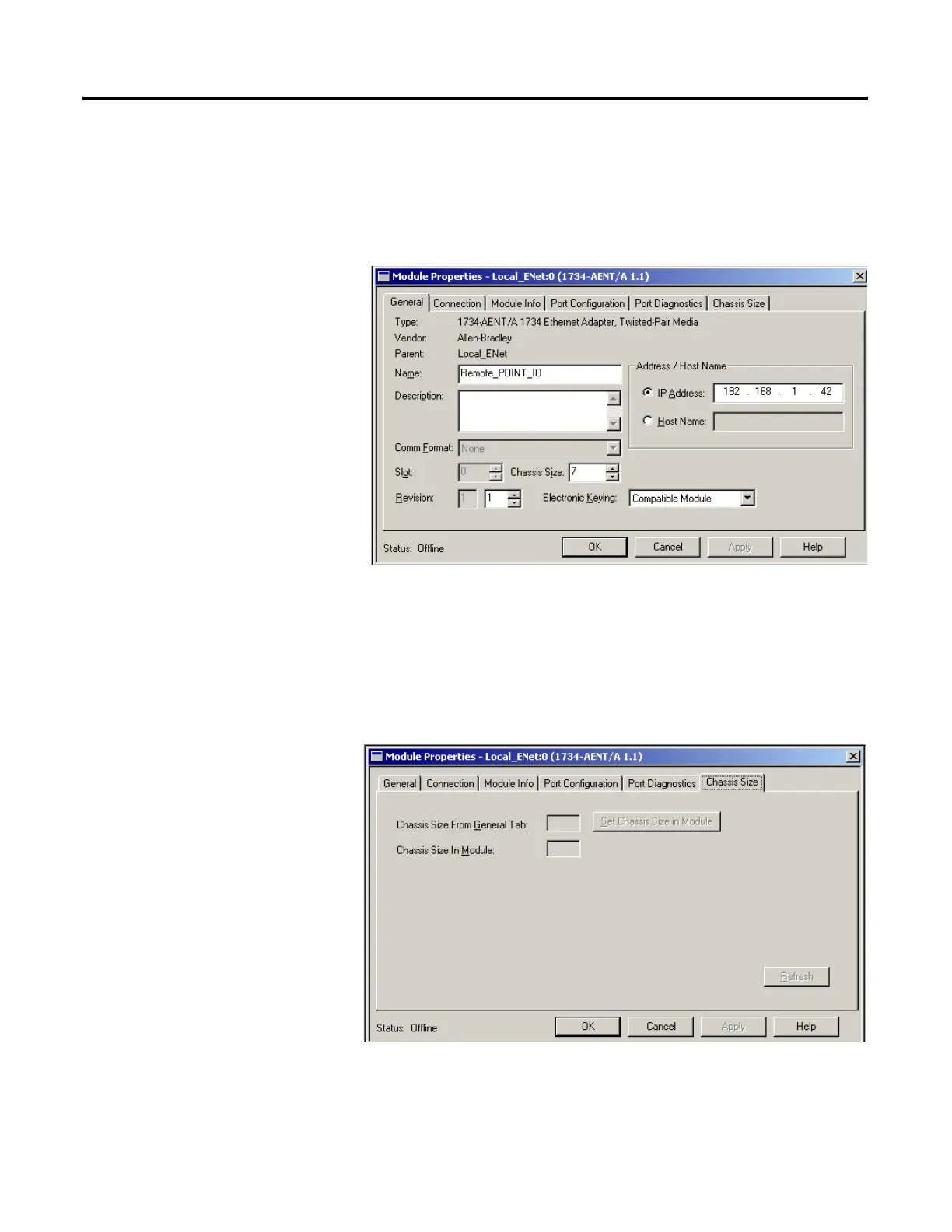

1. Right click on the 1734-AENT adapter and select Properties.
The following window displays:
2. Click on the Chassis Size tab.
You will notice that the data under this tab is grayed out while offline.
The Chassis Size tab is used to send the module size from the General
tab to the module itself once you are online. Otherwise, you will get an
error. We will explore this later. For now, click on OK to close this
window:
3. Right click on the POINT I/O adapter under I/O Configuration to add
a new module.
4. Select the module from the list and click on OK.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
