Publication 1734-UM011A-EN-P - February 2004
Configure the 1734-AENT Adapter for Your EtherNet/IP Network 3-9
Save the Relation List
You can save the Relation List to use later. To save the Relation List perform
the following steps:

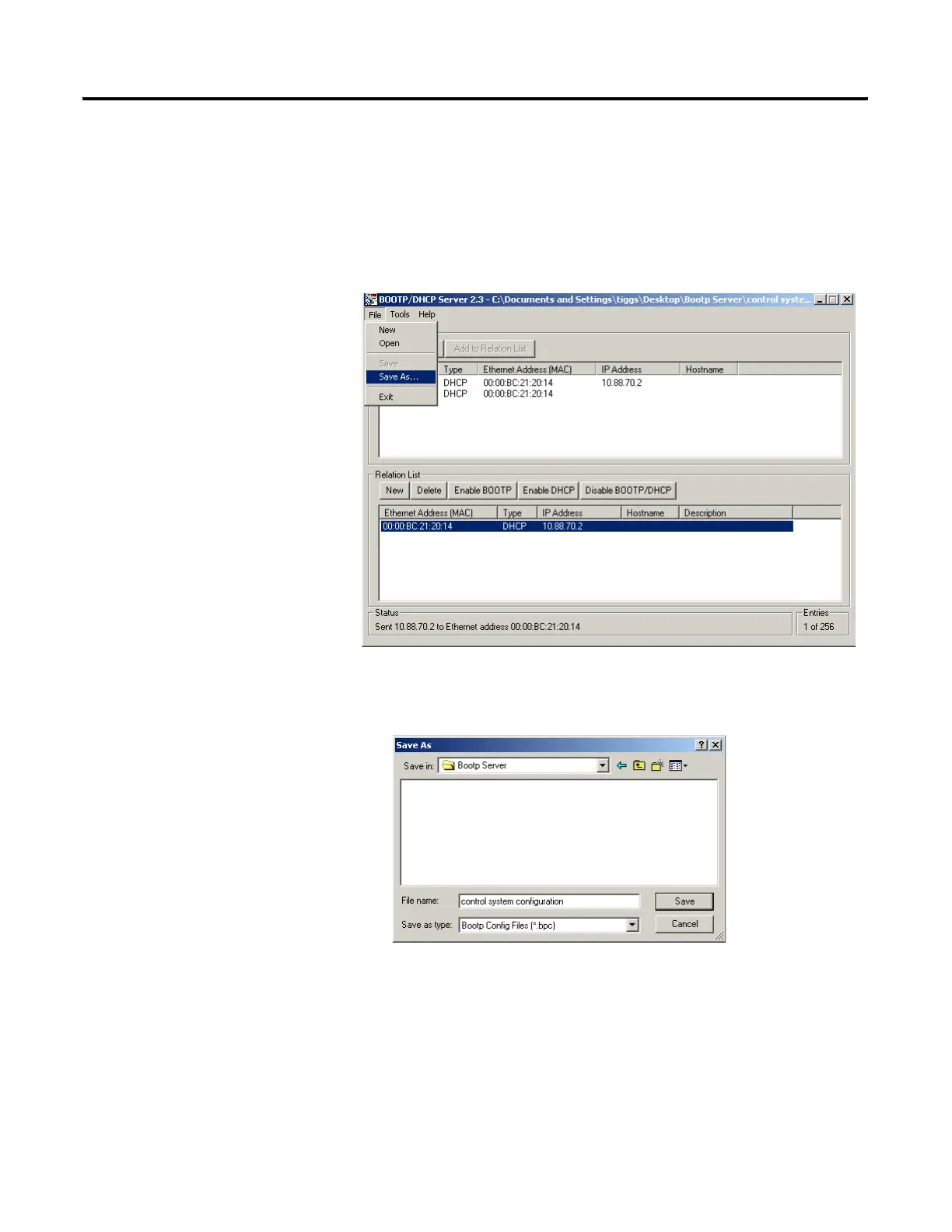

1. Select Save As... from the File menu.
You will see the following window.
2. Select the folder you want to Save in:
3. Enter a File name for the Relation List (e.g., “control system
configuration”) and click on Save.
You can leave the Save as type at the default setting: “Bootp Config
Files (*.bpc)”.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
