Publication 1734-UM011A-EN-P - February 2004
4-16 Configure the 1734-AENT for Direct Connection in RSLogix 5000

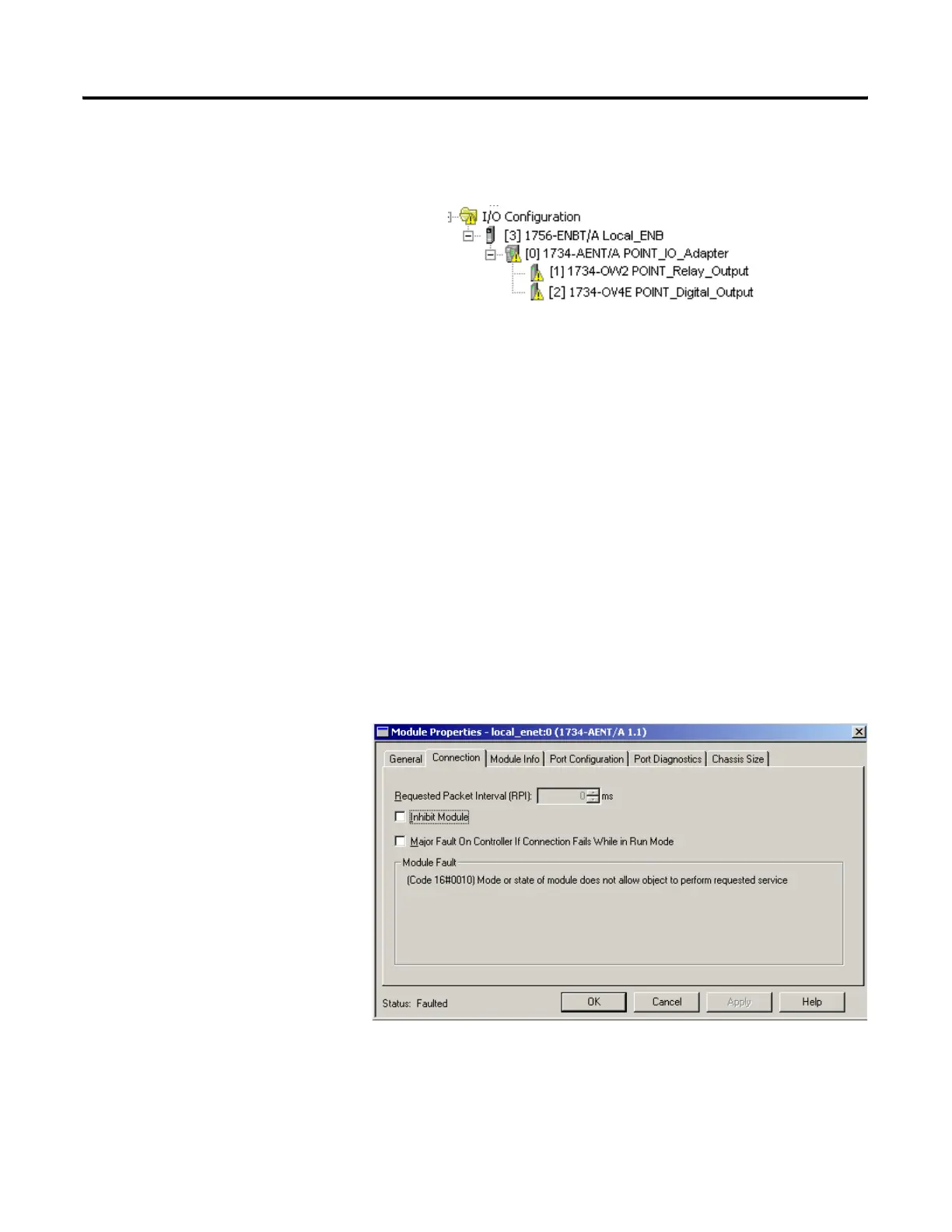

Notice that the 1756-ENBT Bridge is now online. If yellow triangles are
present, see the following section.
Verify the Module
Chassis Size
You have now built the I/O tree in RSLogix 5000, and the RSLogix 5000
software used the chassis size from the 1734-AENT General tab. Now you
need to download this new chassis size value into the 1734-AENT adapter
hardware. This procedure will synchronize the chassis size value from the
RSLogix 5000 software into the 1734-AENT hardware.
1. Verify that RSLogix 5000 is online.
2. Right click on the 1734-AENT under I/O Configuration in the Project
window.
3. Select Properties.
4. Click the Connection tab.
You see the Module Fault error code.
5. Click the Chassis Size tab.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
