Publication 1734-UM011A-EN-P - February 2004

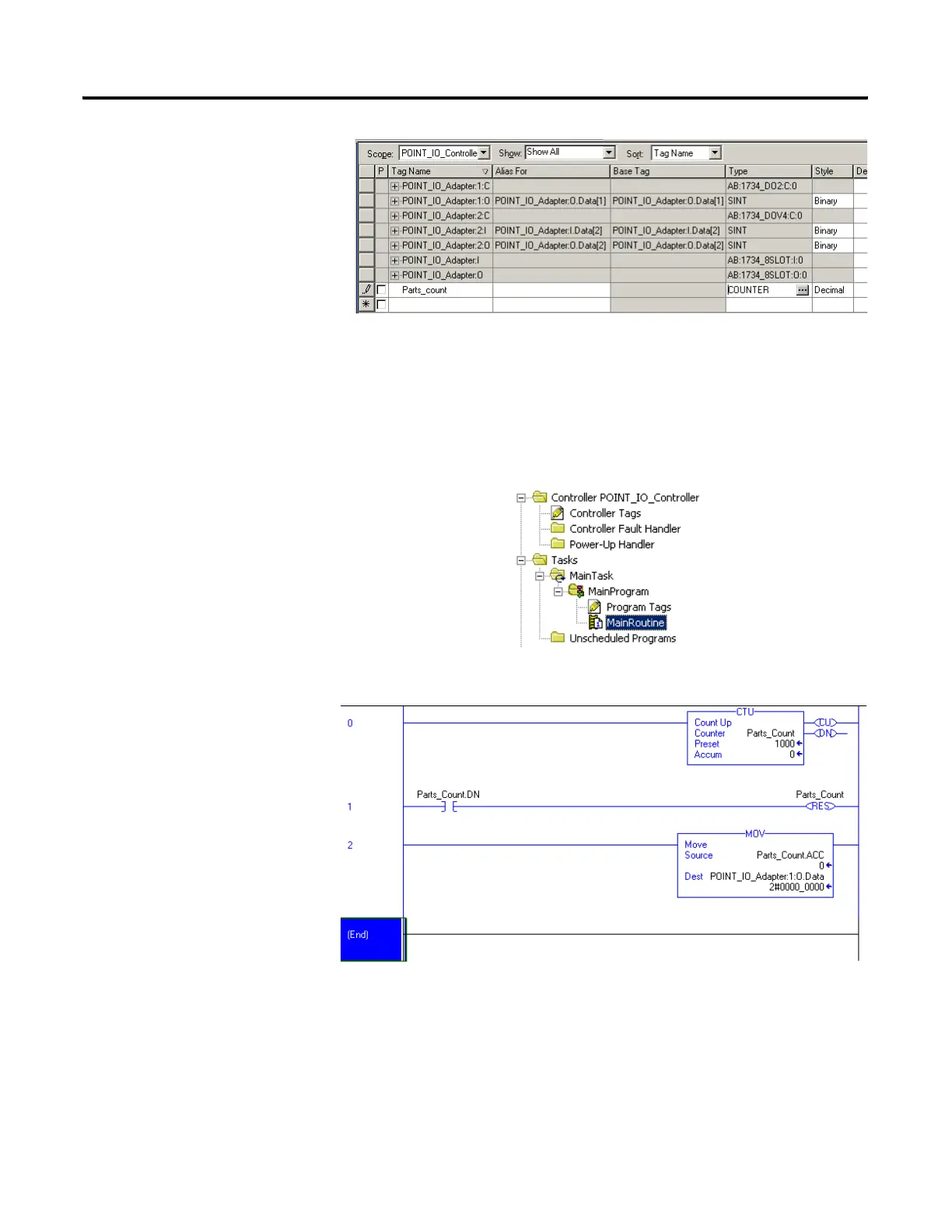

4-14 Configure the 1734-AENT for Direct Connection in RSLogix 5000
3. Close the Controller Tags window.
Create the Ladder Program
Next create the example ladder program to test the I/O.
1. Double-click on Main Routine under the Main Program folder.
2. Enter the following ladder program using the tags previously created.
3. Save the program.
