Publication 1734-UM011A-EN-P - February 2004

Configure the 1734-AENT for Direct Connection and Rack Optimization in RSLogix 5000 5-13

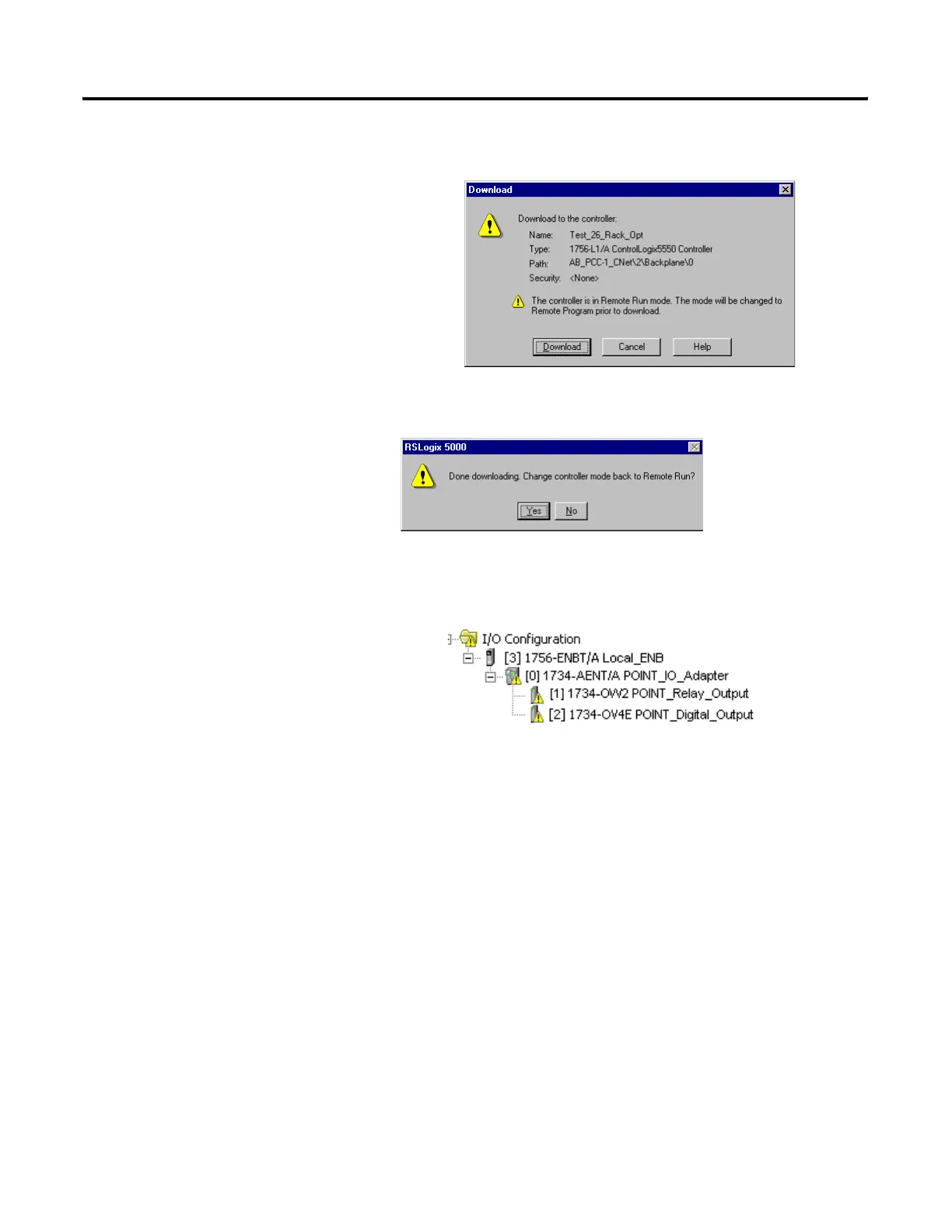

5. Choose Download.

You see this window.

Notice that the 1756-ENBT Bridge is now online. If yellow triangles are

present, see the following section.

Verify the Module

Chassis Size

You have now built the I/O tree in RSLogix 5000, and the RSLogix 5000

software used the chassis size from the 1734-AENT General tab. Now you

need to download this new chassis size value into the 1734-AENT adapter

hardware. This procedure will synchronize the chassis size value from the

RSLogix 5000 software into the 1734-AENT hardware. You must be online to

perform this procedure.

1. Verify that RSLogix 5000 is online.

2. Right click on the 1734-AENT under I/O Configuration in the Project

window.

3. Select Properties.

4. Click the Connection tab.
