Publication 1734-UM011A-EN-P - February 2004
A-8 1734-AENT Adapter Web Pages

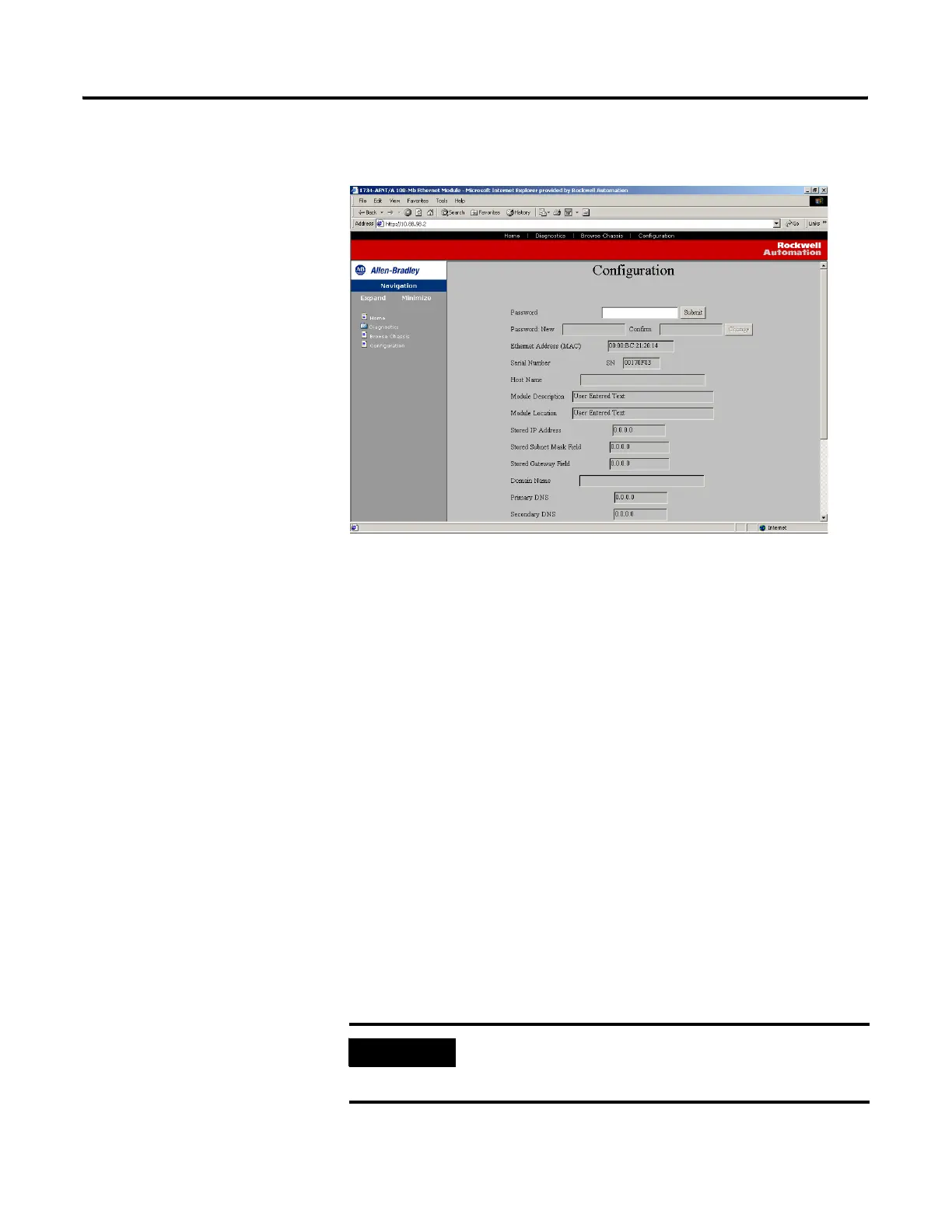

Configuration
The Configuration page provides a way for you to configure the TCP/IP
parameters for your adapter, such as, Host Name, IP Address, Gateway
Address, Subnet Mask, etc.
By default, the password for the screen is password (case sensitive). Once you
enter the password and click the Submit button, you can enter a new
password. Click the Change button to accept the new password.
Entering module information in the Host Name, Module Description, and
Module Location fields. The description and location will help you quickly and
easily identify where the module is in the facility.
As you enter the parameters in the field and press the Enter or Update (on the
web page) key, the field will turn blue to indicate that the value is accepted.
For security purposes, you can disable the adapter’s web pages. Click in the box
to the right of Disable Web Server so a check mark appears to disable this
page.
You have 10 minutes to make changes on this page and to save the new data. A
timer on the top of the page helps you keep track of the elapsed time. The
timer is enabled after you enter the password and click the Submit button.
IMPORTANT
The values on this page are in non-volatile memory. Changes to
these parameters do not take effect until the 1734-AENT has been
reset or the power has been cycled.
