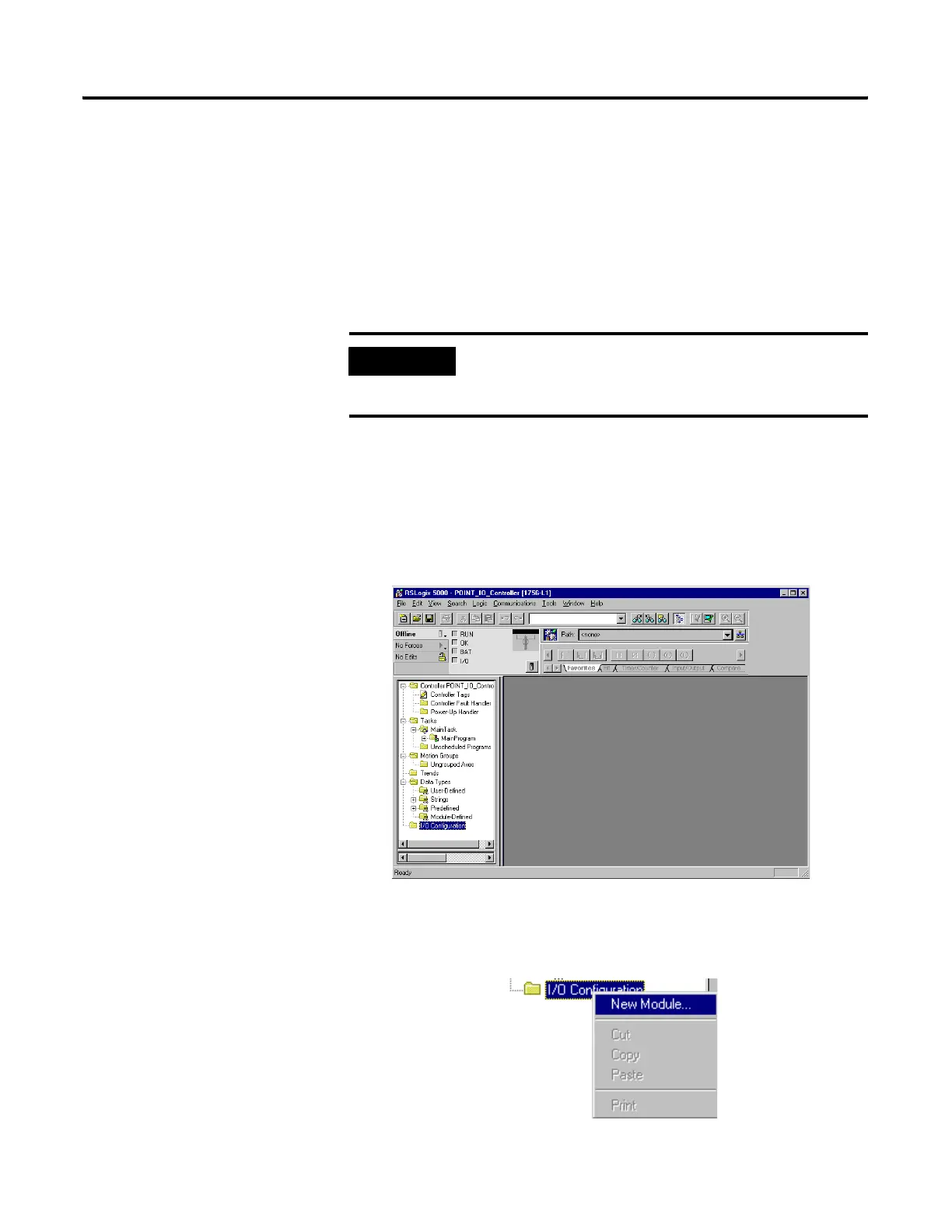

Page #42 background imageLoading...
Page #42 background image
Publication 1734-UM011A-EN-P - February 2004
4-4 Configure the 1734-AENT for Direct Connection in RSLogix 5000
5. Click on OK.
Configure the I/O
You now add the POINT I/O modules to the controller’s I/O configuration.
To do this you first add the local 1756-ENBT module to the I/O
configuration. Next you add the 1734-AENT adapter as a “child” of the
1756-ENBT module. Then you add the I/O modules as “children” of the
1734-AENT adapter.
Add the Local EtherNet/IP Bridge to the I/O Configuration
1. Select the I/O Configuration folder in the project window and click the
right mouse button.
A pop-up window will open.
2. Click on New Module.
IMPORTANT
Click on the Help buttons on the configuration screens
shown in this section if you need assistance in selecting
and setting the parameters.
