Configure the 1734-AENT for Direct Connection and Rack Optimization in RSLogix 5000 5-11
Add the POINT I/O Module and Configure For Rack Optimization

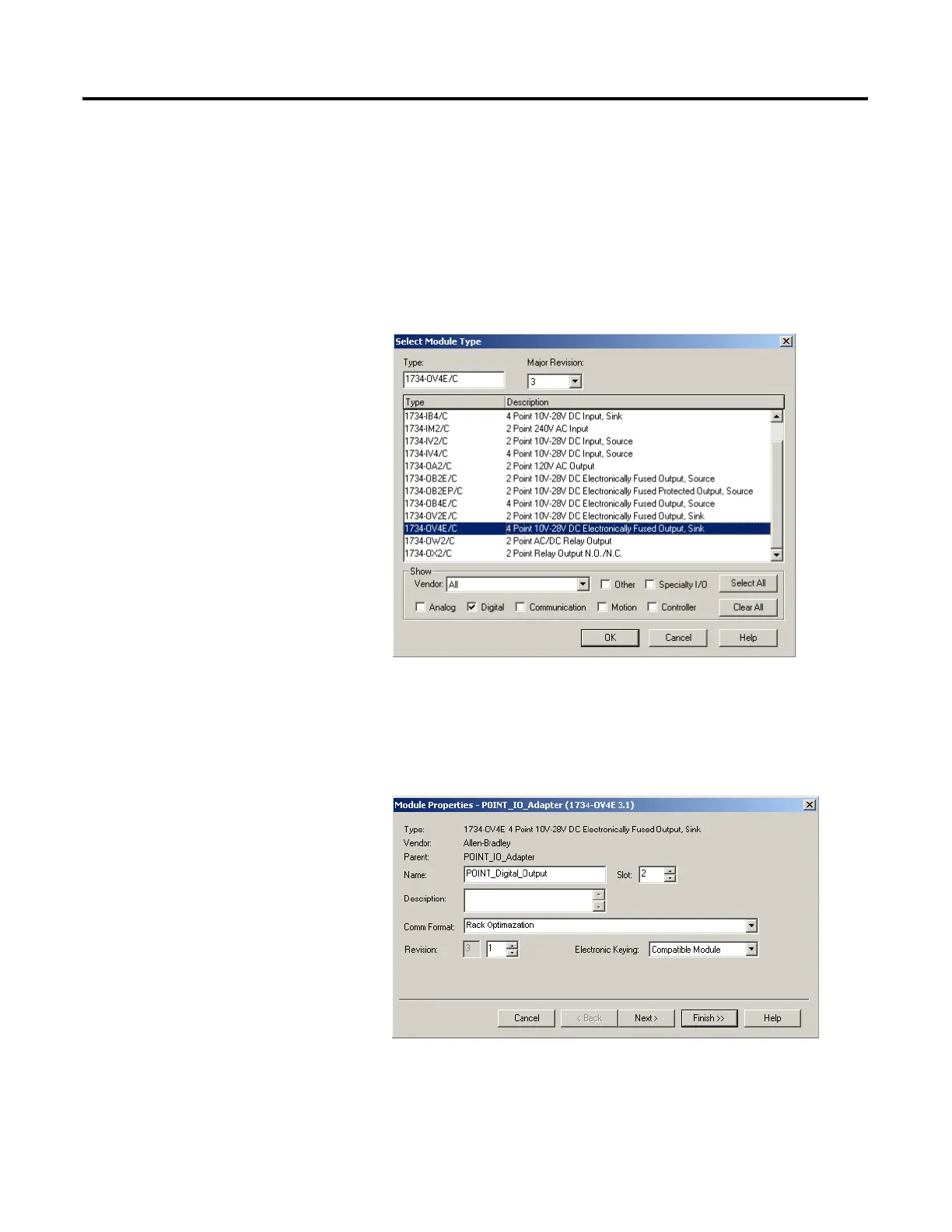

1. Highlight the 1734-AENT under I/O Configuration, right click and
select New Module.
The Select Module Type window will open.
2. Choose the 1734-OV4E/C module.
3. Click OK.
The Module Properties window will open.
4. Enter a Name, Slot, Comm Format, and Comm Format.
The Comm Format is Rack Optimization because we are configuring a
mixed direct connection and rack optimized connection, with the
1734-OVE4/C digital output module configured for a rack optimized
connection.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
