Allen-Bradley Rockwell Automation 1734-AENT User Manua

Publication 1734-UM011A-EN-P - February 2004
D-10 1734-AENT Quick Start
Adding the AB_ETHIP-1 (EtherNet/IP) Driver

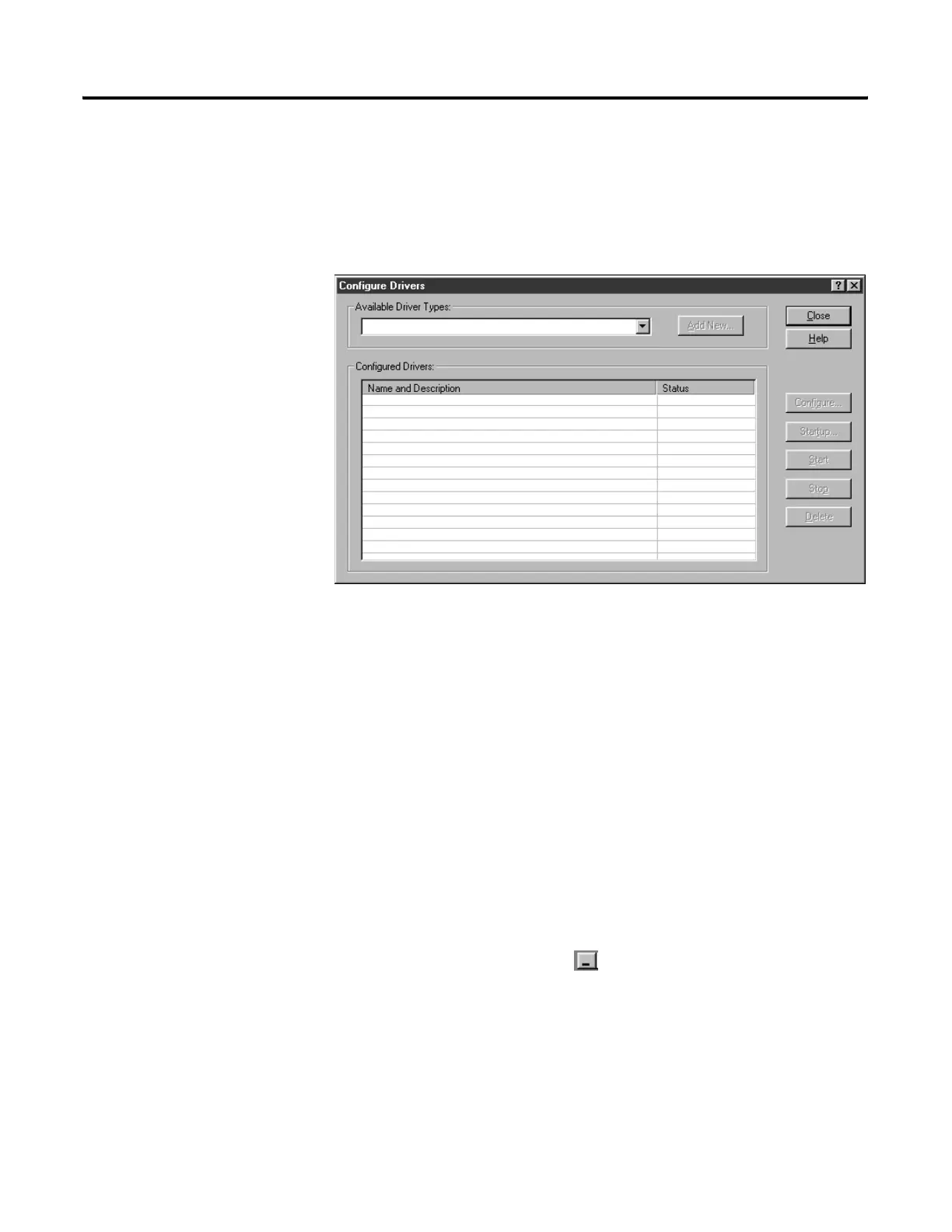

1. From the Communications menu, choose Configure Drivers.
The Configure Drivers dialog appears.
2. From the Available Driver Types pull-down menu, choose EtherNet/IP
Driver.
3. Click on the Add New button.
4. Click on OK to accept the default name (AB_ETHIP-1).
5. Ensure that the radio button for Browse Local Subnet is enabled.
6. Click on OK.
7. Verify that the driver you just configured is running and click on the
Close button to exit the Configure Drivers window.
8. Click on the X in the upper right corner of the RSWho window to stop
RSWho.
9. Click on the minimize icon in the upper right corner of the RSLinx
window to minimize RSLinx.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
