Publication 1734-UM011A-EN-P - February 2004
1734-AENT Adapter Web Pages A-7
Browse Chassis

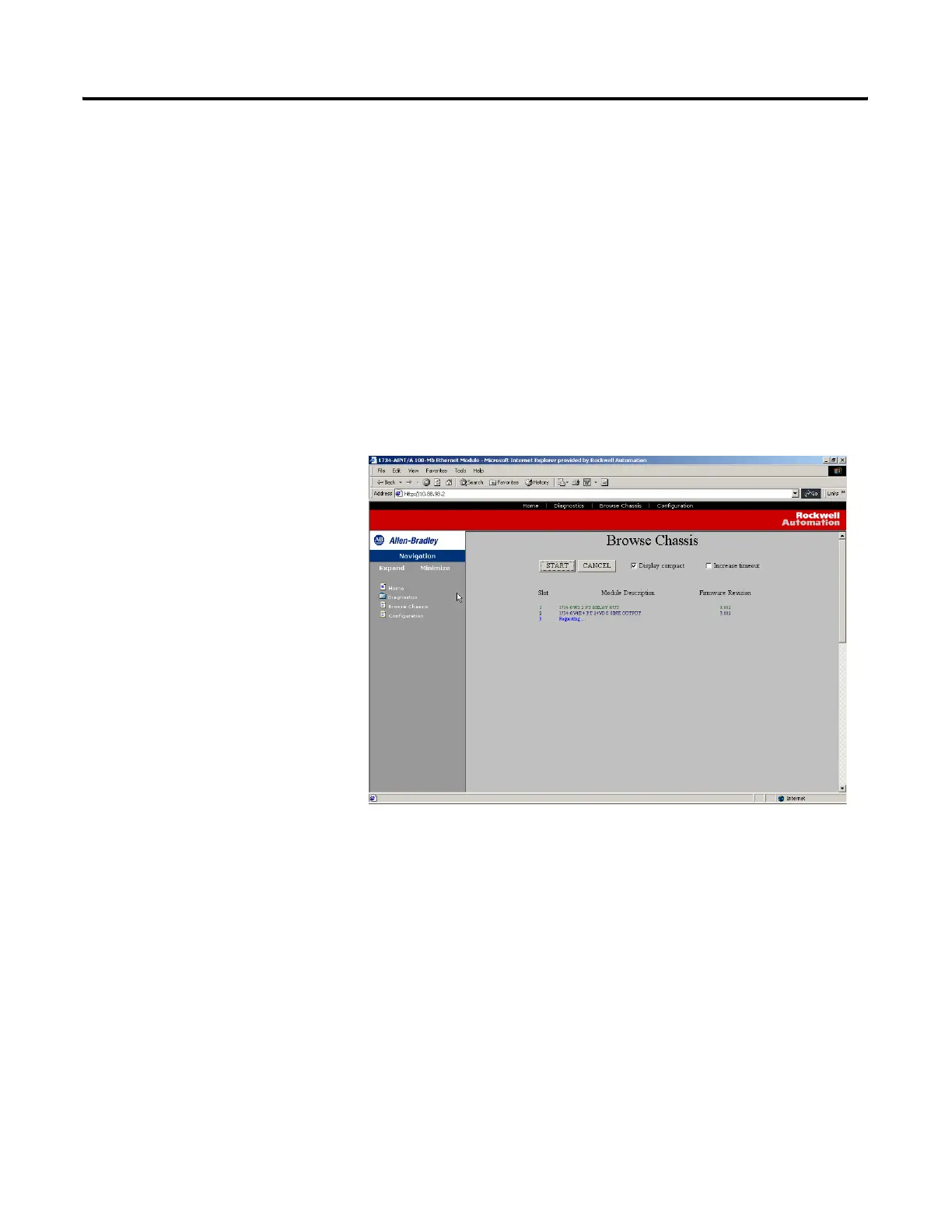

Browse the chassis to see what modules are present on the system. A query
will run from slot 1 to slot 63. The Browse Chassis page will display the
modules that were found based on this query. The Browse Chassis page
provides an easy and helpful way to see what modules the adapter is
recognizing on your system.
Select the Display compact button so a check mark appears to decrease
the font size. This may make it easier to read the screen.
Select the Increase timeout button so a check mark appears to increase
the time of the browse query. This will increase the time the modules are
given to respond to the query. This function is useful when you are
browsing a busy system.
