Configure the 1734-AENT for Direct Connection in RSLogix 5000 4-11

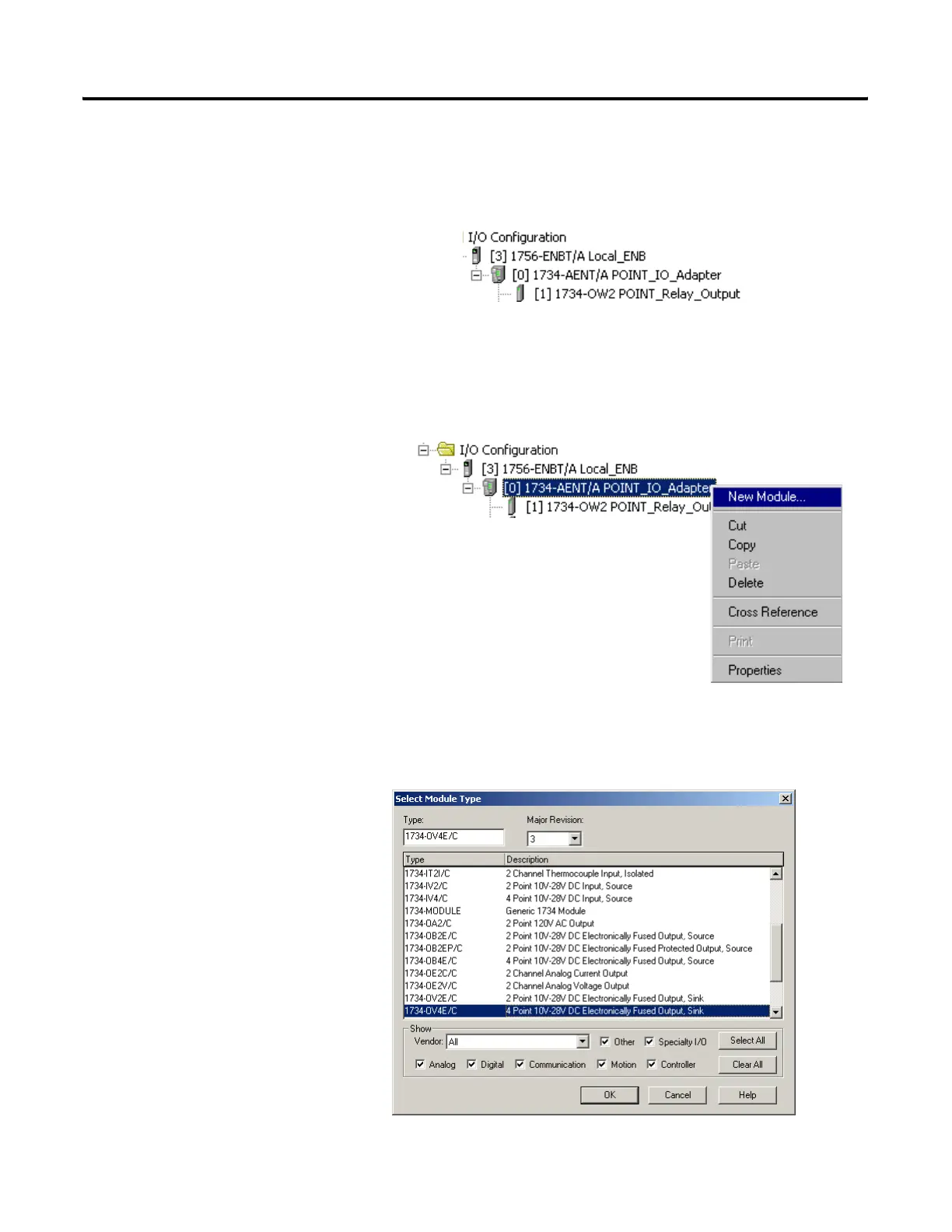

7. Click on the Finish button to save the configuration.
The relay output module will appear in the I/O configuration indented
under the 1734-AENT adapter.
Add the Digital Output Module
8. Right click on the 1734-AENT adapter and again select New Module.
The Select Module Type window will open.
9. Select the 1734-OV4E/C digital output module from the list.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
