Install the 1734-AENT Adapter 2-5

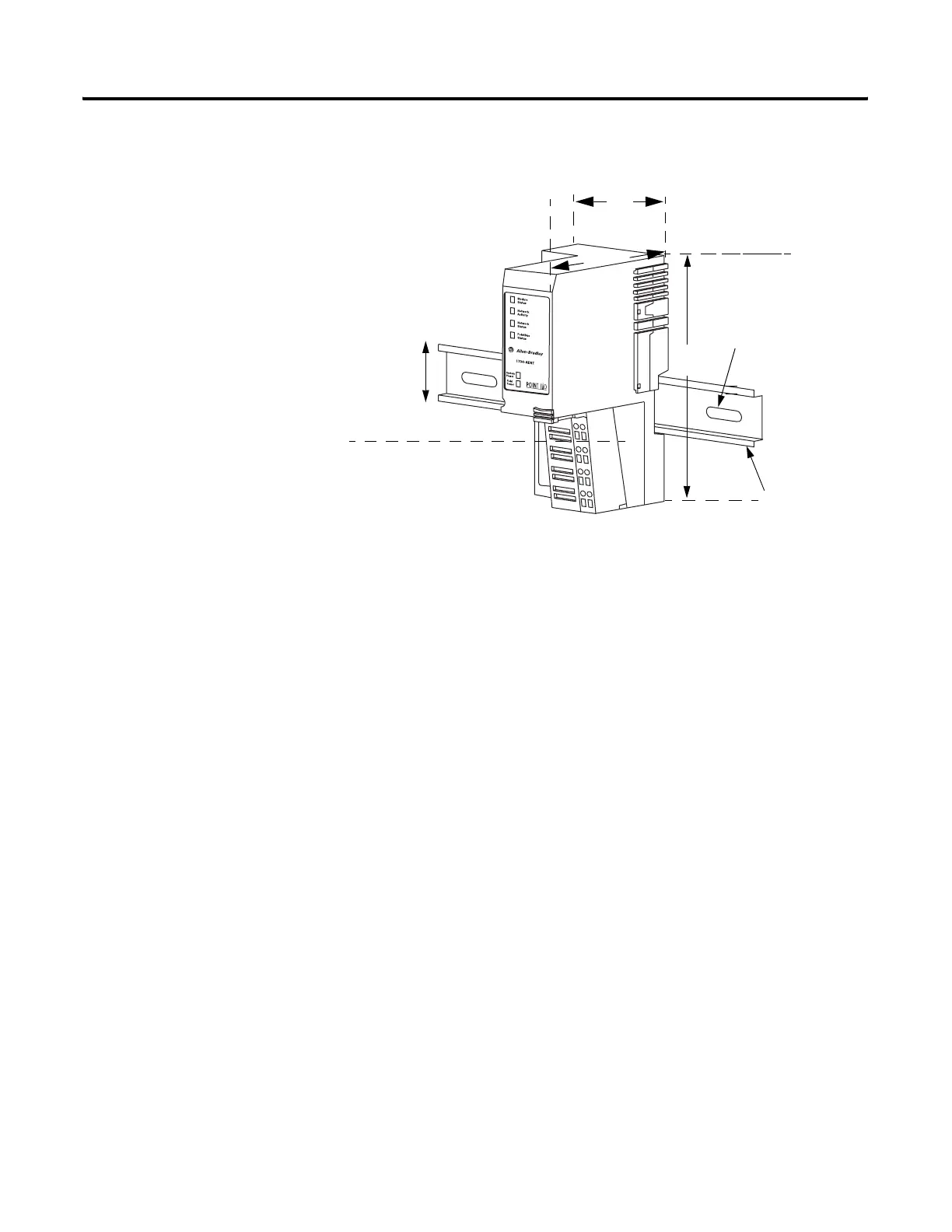

Mounting Dimensions
What’s Next?
The following chapter describes how to configure the adapter to communicate
on your EtherNet/IP network by providing an IP address, Gateway address,
and Subnet mask.
inches
(millimeters)
A = DIN rail
B = Secure DIN rail approximately every 200mm
A
B
5.25
(133.4)
2.16
(54.9)
3.0
(76.5)
1734-AENT
3.0H x 2.16W x 5.25D
(76.2H x 54.9W x 133.4D)
43520
1.44
(36.51)

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
