4-6 Configure the 1734-AENT for Direct Connection in RSLogix 5000
Add the POINT I/O Adapter to the I/O Configuration
Next, you must add the 1734-AENT adapter as a “child” of the local
1756-ENBT module.

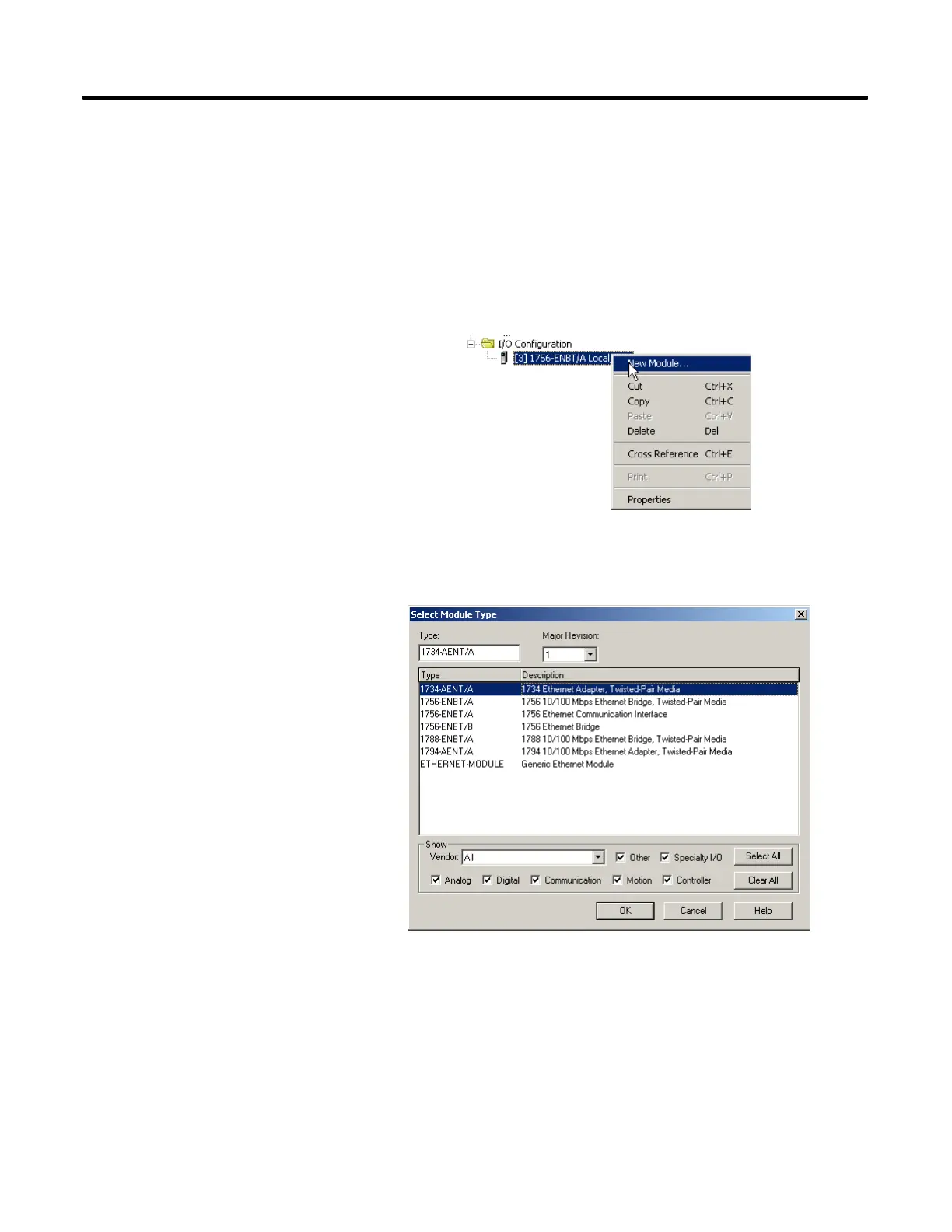

1. In the Project window, right click on the local 1756-ENBT module
under the I/O Configuration folder and select New Module from the
pop-up window.
The Select Module Type window will open.
2. Select the 1734-AENT/A Ethernet adapter from the list and click on OK.

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
