Configure the 1734-AENT for Direct Connection and Rack Optimization in RSLogix 5000 5-3
Create the
Example Application

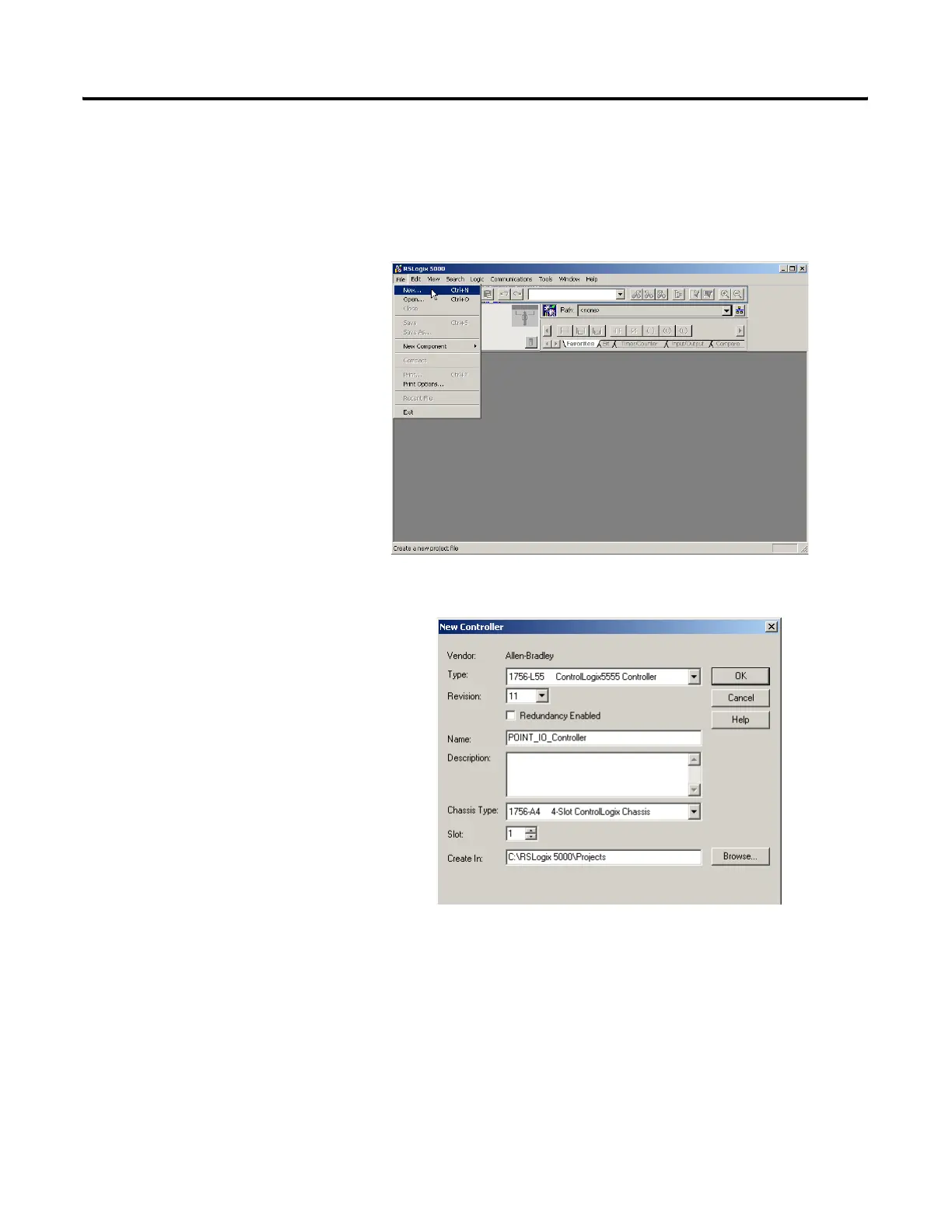

Perform the following steps to create the example application:
1. Start RSLogix 5000 Enterprise Series. The RSLogix 5000 Main
Window will open.
2. From the File menu, select New.
The New Controller pop-up window will open.
3. Enter an appropriate Name for the Controller, e.g.,
“POINT_IO_Controller.”
4. Select the correct Version, Chassis Type and Slot number of the
Logix5555 controller, and the folder where you want to save the
RSLogix 5000 file (Create In). The Description is optional.
Note: Version 11 of RSLogix 5000 lets you choose to enable
redundancy. This example does not use redundancy. If you are going to
use redundancy in your system, check the Redundancy Enabled box so
that a check mark appears.
