Publication 1734-UM011A-EN-P - February 2004

Configure the 1734-AENT Adapter for Your EtherNet/IP Network 3-7

Use the Rockwell

BootP/DHCP Utility

The Rockwell BootP/DHCP utility is a stand alone program that incorporates

the functionality of standard BootP software with a user friendly graphical

interface. It is located in the Utils directory on the RSLogix 5000 installation

CD. The 1734-AENT adapter must have DHCP enabled (factory default and

the network address switches set to an illegal value) to use the utility.

To configure your adapter using the BootP utility, perform the following steps:

1. Run the BootP software.

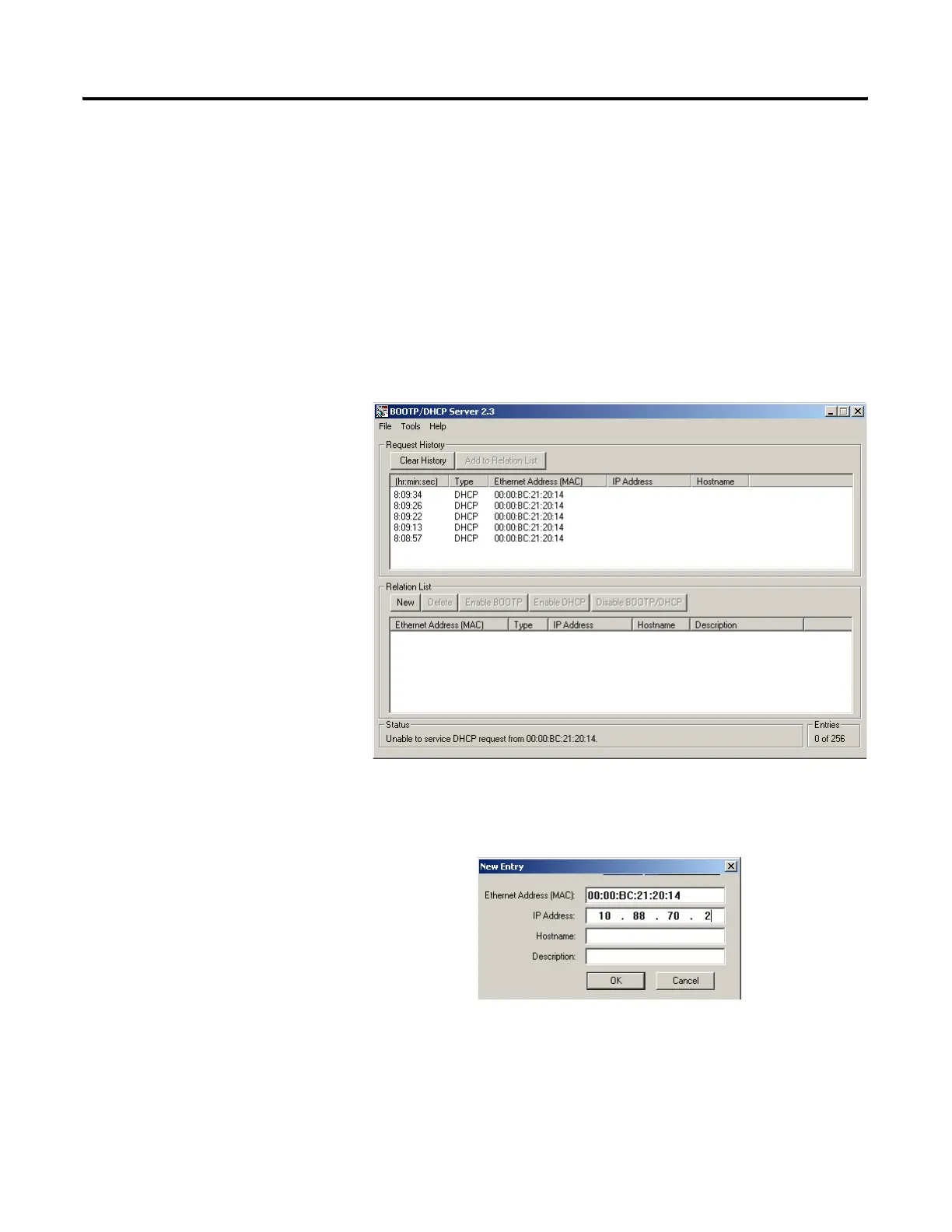

In the BOOTP Request History panel you will see the hardware

addresses of devices issuing BootP requests.

2. Double-click on the hardware address of the device you want to

configure. You will see the New Entry pop-up window with the device’s

Ethernet Address (MAC).

3. Enter the IP Address you want to assign to the device and click on OK.
