Publication 1734-UM011A-EN-P - February 2004
5-12 Configure the 1734-AENT for Direct Connection and Rack Optimization in RSLogix 5000
The output data for the 1734-OW2 is a separate and distinct module on
the network. The 1734-OV4E is part of the rack connection.

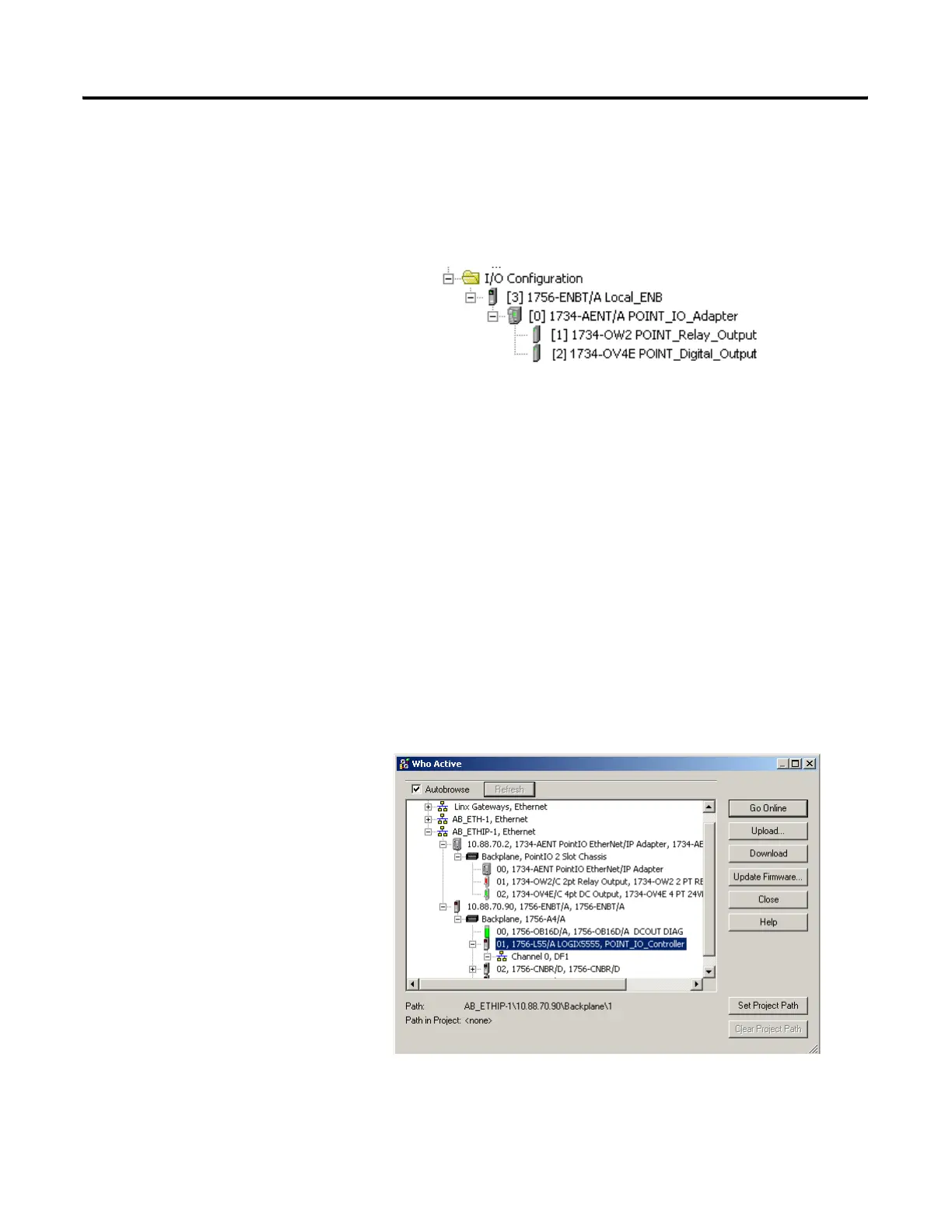

5. Click on the Finish button to accept the configuration. The I/O
Configuration in the Project window should look similar to the one
shown below.
6. Choose Finish.
7. Choose File>Save and enter the name and location of the RSLogix
5000 file.
Download the Program to
the Controller
Follow this procedure to download the program we just saved to the
ControlLogix controller.
1. From the main menu, choose Communications>Who-Active.
2. Navigate to select the slot where the processor is located in the chassis.
3. Choose Set Project Path.
4. Choose Download.
