4-12 Configure the 1734-AENT for Direct Connection in RSLogix 5000

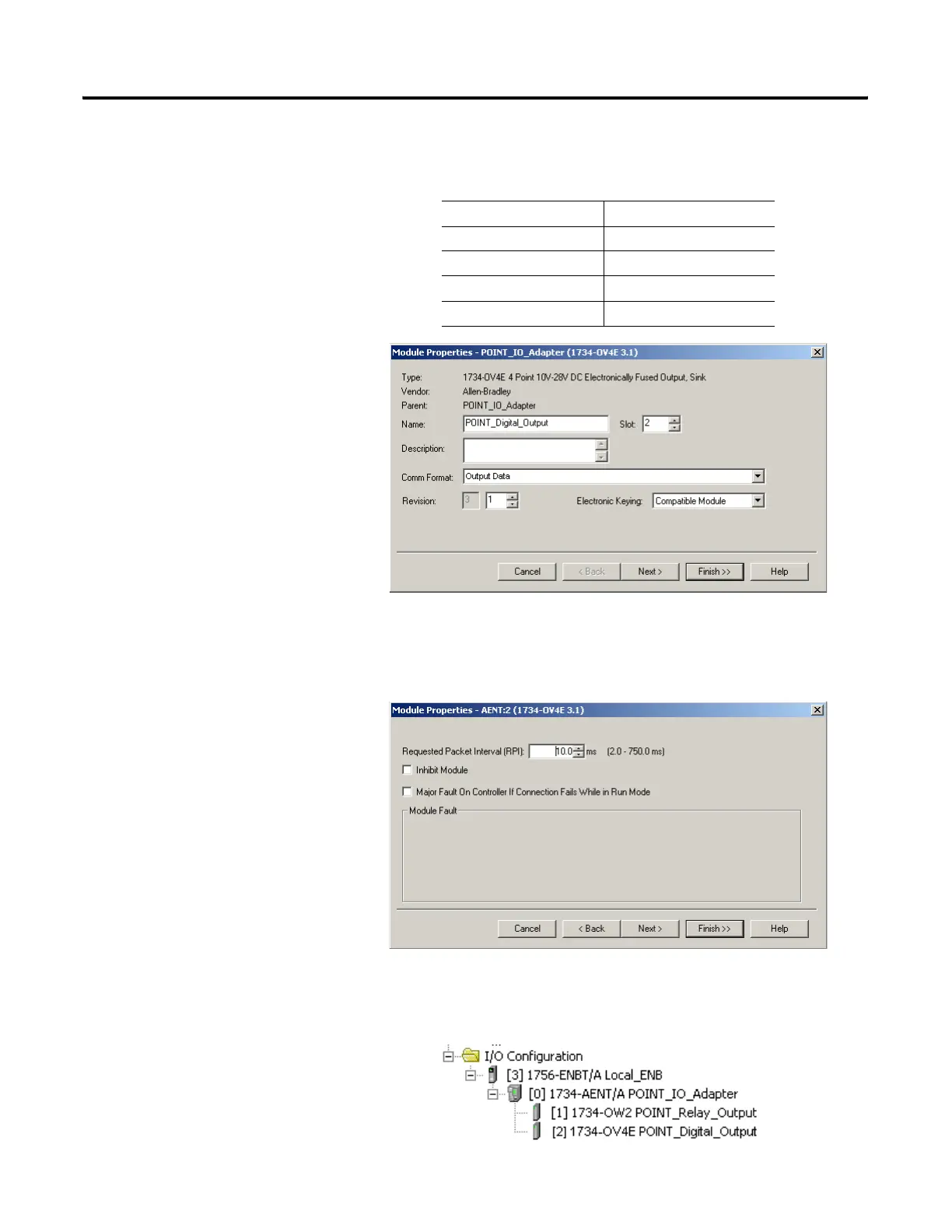

The Module Properties window will open.
10. We used the following values:
11. Click the Next button.
12. Leave 10 ms. as the RPI for the 1734-OV4E module.
13. Click on the Finish button to accept the configuration. The I/O
Configuration in the Project window should look similar to the one
shown below.
Name POINT_Digital_Output
Slot 2
Comm Format Output Data
Electronic Keying Compatible Module
Revision 3.1

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
