Publication 1734-UM011A-EN-P - February 2004

Configure the 1734-AENT Adapter for Your EtherNet/IP Network 3-5

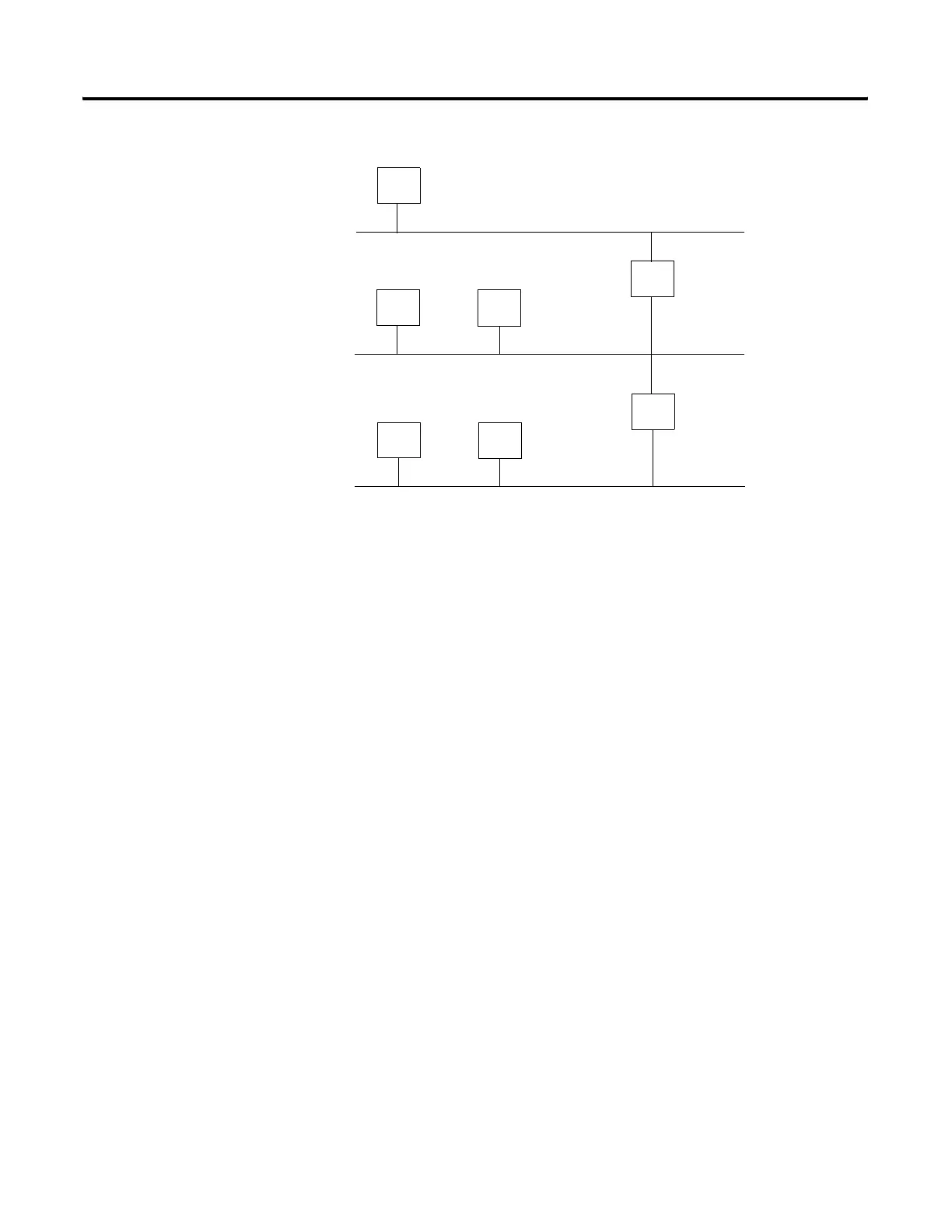

The new configuration is:

A second network with Hosts D and E has been added. Gateway G2 connects

Network 2.1 with Network 2.2. Hosts D and E will use Gateway G2 to

communicate with hosts not on Network 2.2. Hosts B and C will use Gateway

G to communicate with hosts not on Network 2.1. When B is communicating

with D, G (the configured Gateway for B) will route the data from B to D

through G2.

128.1.0.1

128.2.64.1 128.2.64.2

128.2.64.3

128.1.0.2

Network 1

Network 2.1

128.2.128.1 128.2.128.2

128.2.128.3

Network 2.2
