Configure the 1734-AENT for Direct Connection and Rack Optimization in RSLogix 5000 5-5

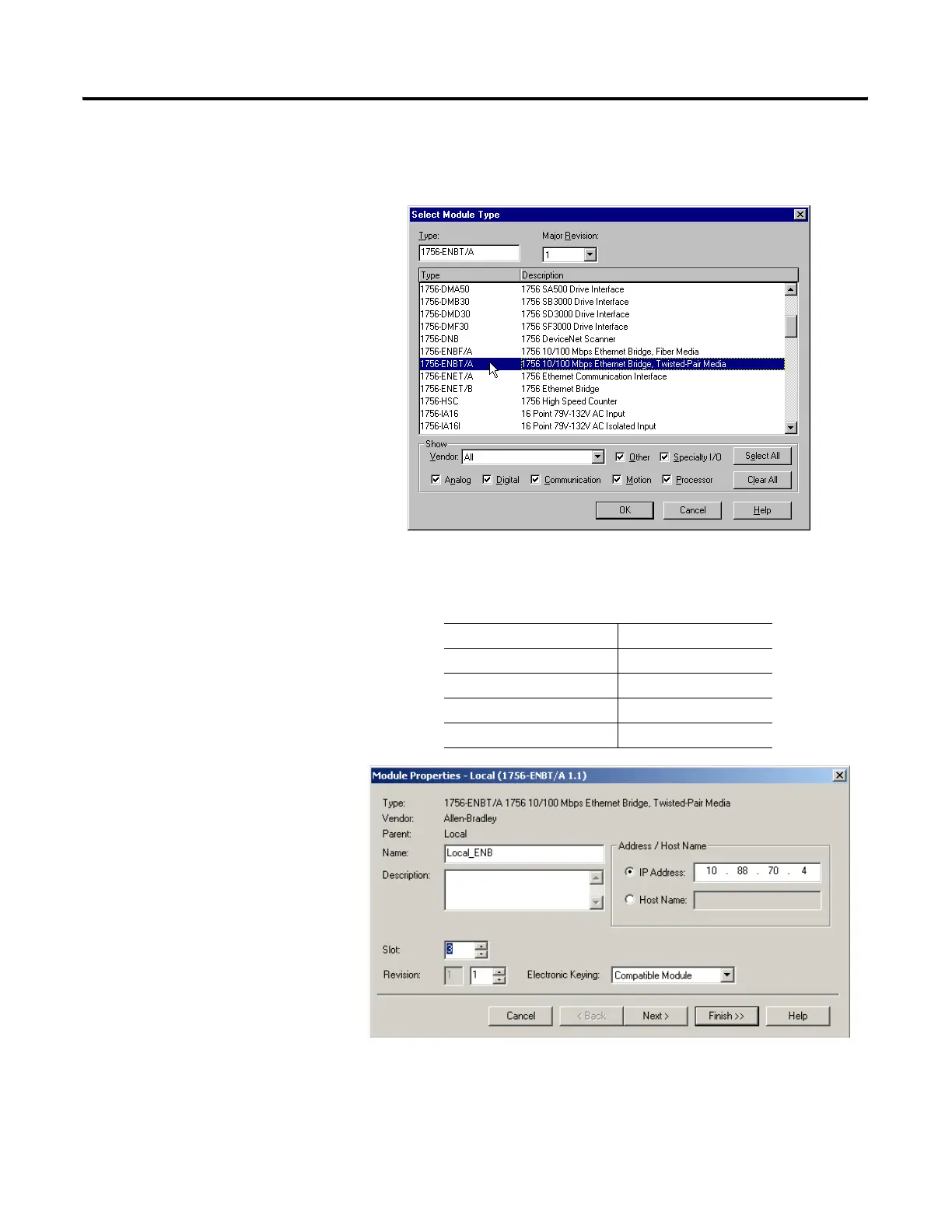

The Select Module Type window will open.
3. Select the 1756-ENBT EtherNet/IP Bridge and click on OK.
The Module Properties window will open.
4. We used the following values:
5. Click on Finish to accept the configuration.
Name Local_ENB
IP Address 10.88.70.4
Slot 3
Electronic Keying Compatible Module
Revision 1.1

Allen-Bradley Rockwell Automation 1734-AENT Specifications

General

Model	1734-AENT
Category	Network Hardware
Type	EtherNet/IP Adapter
Ethernet Ports	2
IP Addressing	Static or DHCP
Network Address	Configurable via software
Mounting	DIN rail
Number of Ports	2
Port Type	RJ45
Communication Protocol	EtherNet/IP
Manufacturer	Rockwell Automation
Power Supply	24V DC
Enclosure	Open-style
