Configure the 1734-AENT for Direct Connection and Rack Optimization in RSLogix 5000 5-7

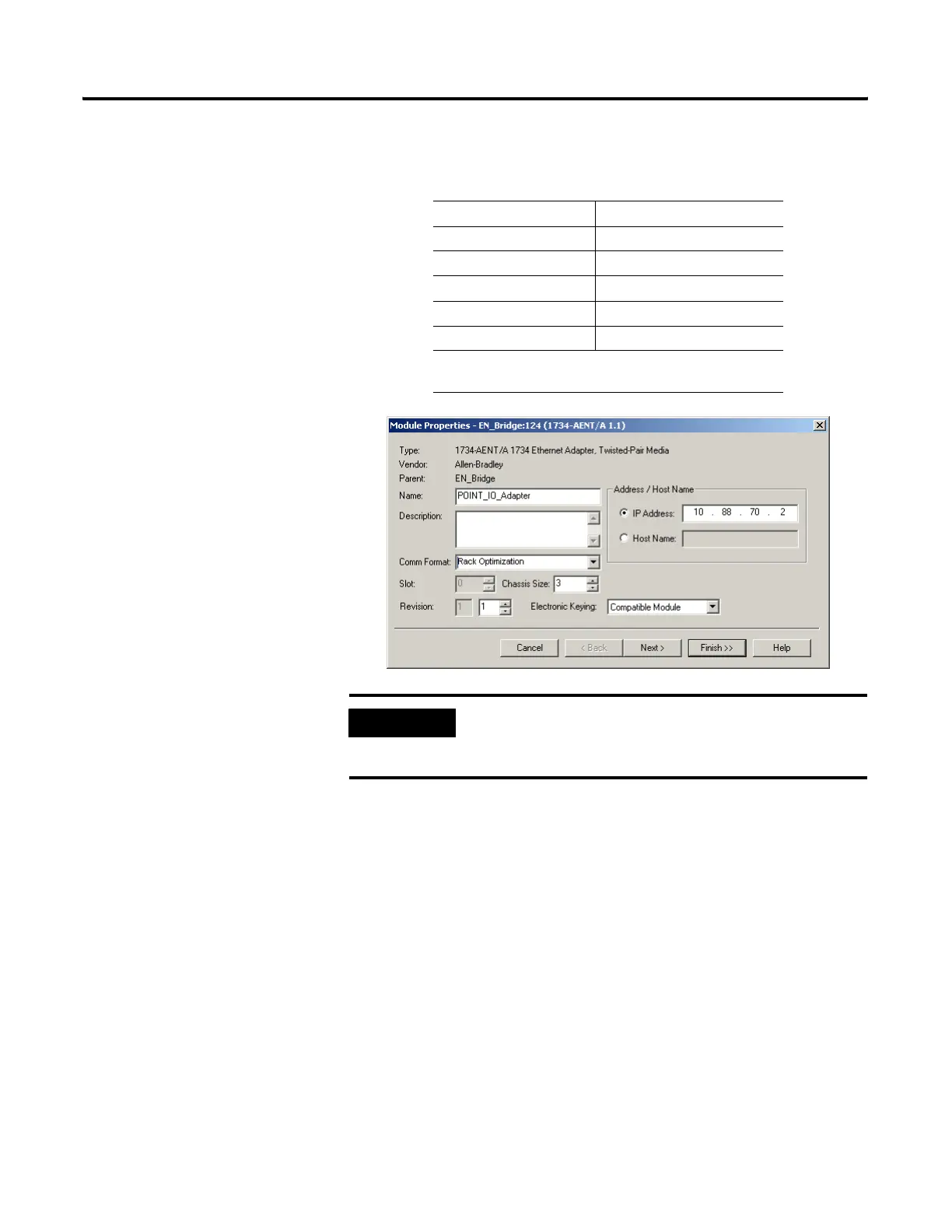

The Module Properties window will open.
3. We used the following values:
• Comm Format choices:
– none = the adapter will make a direct connection to each of the
modules referenced by the data
– rack optimization = digital I/O data is collected into a rack image.
(Note: This does not include analog or specialty I/O modules.)
– listen only - rack optimization = read or verify data only, but does not
control the modules (when you have multiple processors - one
processor is used to control and the other processors are used to
monitor).
Because we are making a mixed connection (both a direct connection
and rack optimized connection), Rack Optimization is chosen as the
Comm Format.
4. Click on Next.
Name POINT_IO_Adapter
IP Address 10.88.70.2
Comm Format Rack Optimization
Chassis Size 3
Electronic Keying Compatible Module
Revision 1.1
Note that the Slot field is disabled because the slot is
automatically 0 for the 1734-AENT.
IMPORTANT
The chassis size equals 1 for the adapter + the number of
POINT I/O modules installed (physically present on the
POINT I/O backplane).
