Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide
• Interface Status — Displays the current interface status.
2. Check the Enable Bridge Multicast Filtering checkbox.
3. Click Create. The Add Multicast Group Page opens:

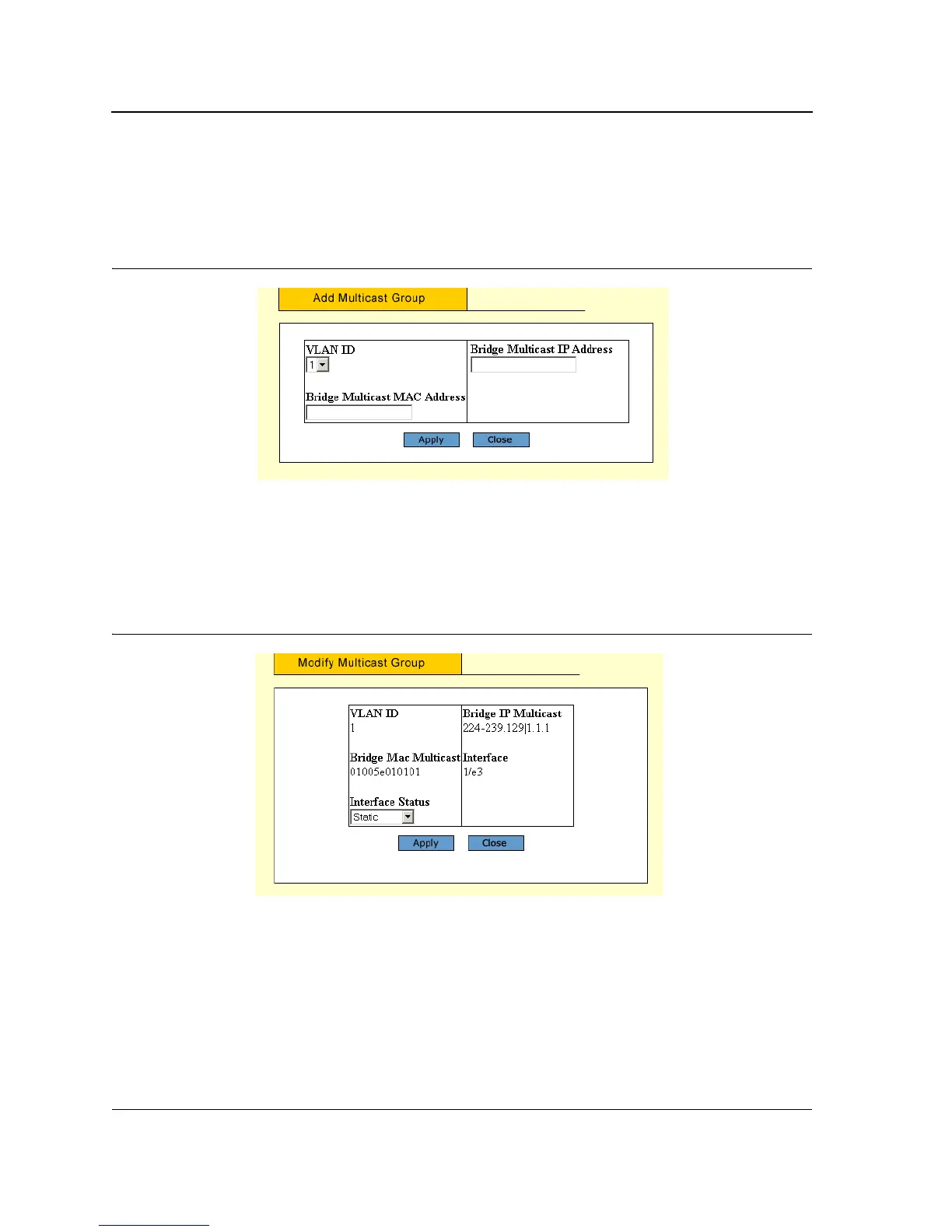

Figure 65: Add Multicast Group Page
4. Select the VLAN ID.
5. Enter the Bridge Multicast MAC Address and the Bridge Multicast IP Address.
6. Click Apply. The new Multicast group is saved and the device is updated.
To modify a multicast group:
Click Modify. The Modify Multicast Group Page opens:
Figure 66: Modify Multicast Group Page
7. Define the fields.
8. Click Apply. The Multicast Group is saved and the device is updated.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
