Allied Telesis AT-8000S Series User Manual

Configuring SNMP
Defining SNMP Groups
Page 117
– Read — Management access is restricted to read-only, and changes cannot be made to the assigned
SNMP view.
– Write — Management access is read-write and changes can be made to the assigned SNMP view.
– Notify — Sends traps for the assigned SNMP view.
2. Click Create. The Create SNMP Group Profile Page opens:

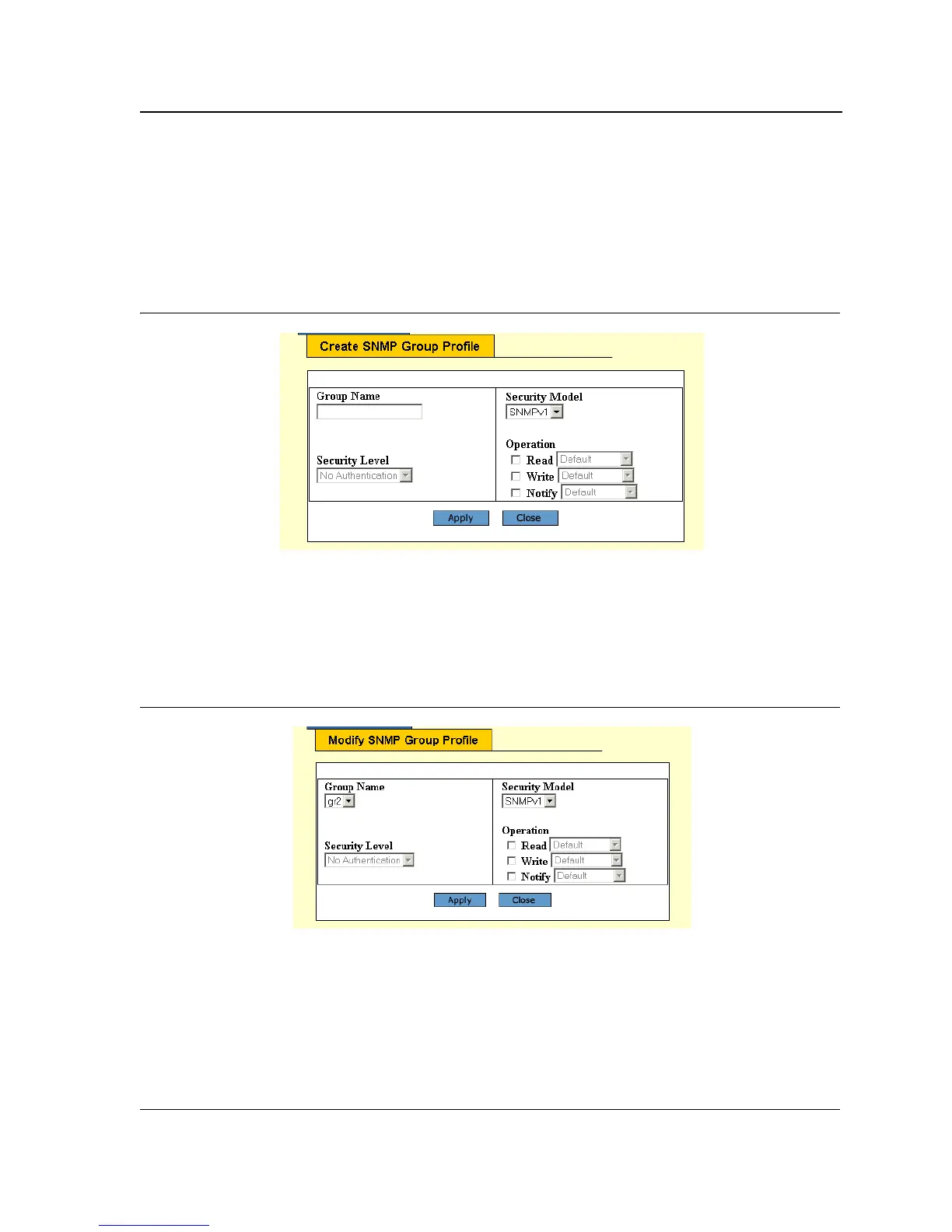

Figure 73: Create SNMP Group Profile Page
3. Define the Group Name, Security Level, Security Model, and Operation.
4. Click Apply. The SNMP group profile is saved.
To modify an SNMP group:
1. Click SNMP > Groups. The SNMP Group Page opens.
2. Click Modify. The Modify SNMP Group Profile Page opens:
Figure 74: Modify SNMP Group Profile Page
3. Define the Group Name, Security Level, Security Model, and Operation.
4. Click Apply. The SNMP group profile is saved.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
