Allied Telesis AT-8000S Series User Manual

Page 162
Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide
2. Click Create. The Create Event Entry Page opens:

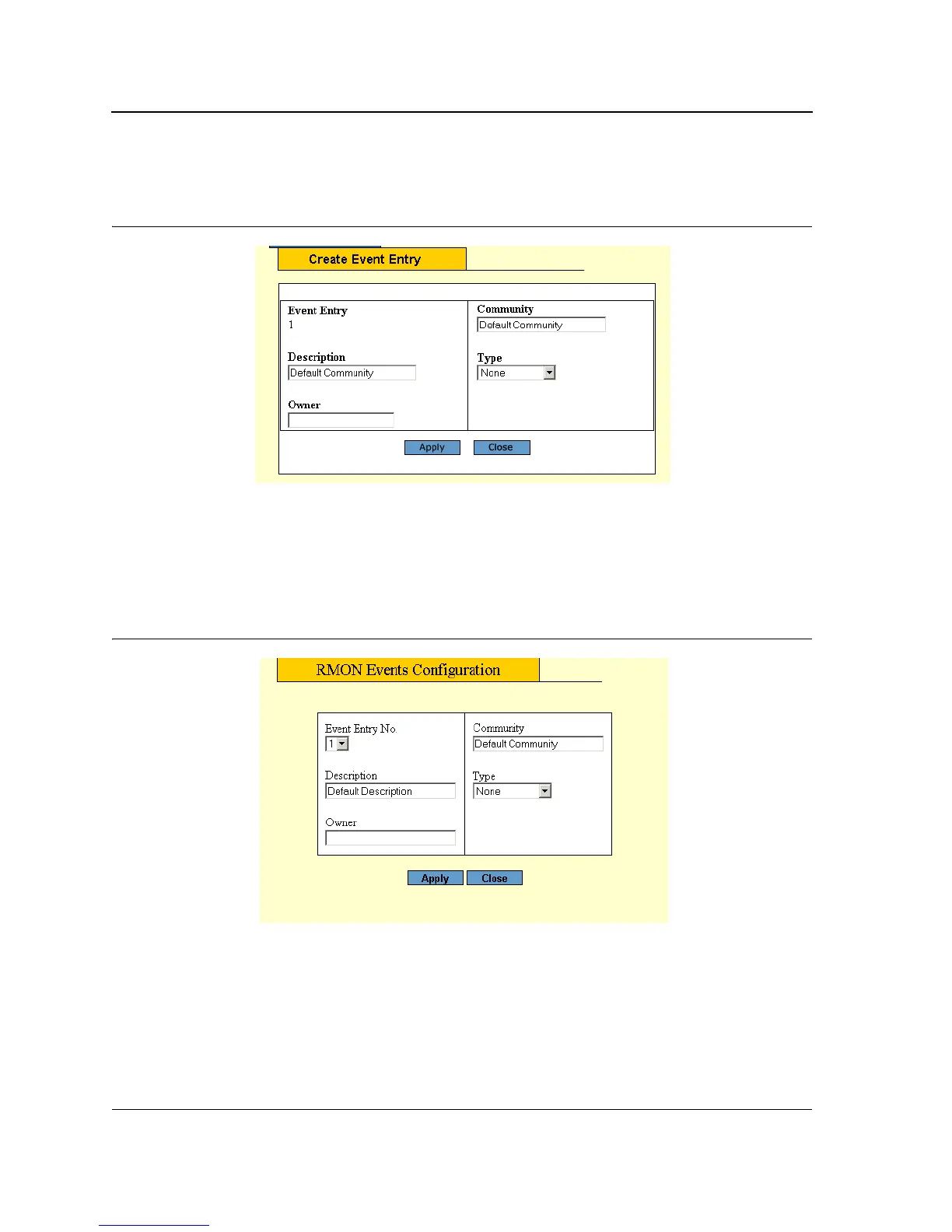

Figure 105:Create Event Entry Page
3. Define the Community, Description, Type and Owner fields.
4. Click Apply. The event entry is added and the device is updated.
To modify the RMON Event entry settings:
1. Click Statistics > RMON Events. The RMON Events Page opens.
2. Click Modify. The Event Control Settings Page opens:
Figure 106:Event Control Settings Page
3. Select an event entry and define the fields for the entry.
4. Click Apply. The event control settings are saved and the device is updated.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
