Allied Telesis AT-8000S Series User Manual

Page 36
Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide

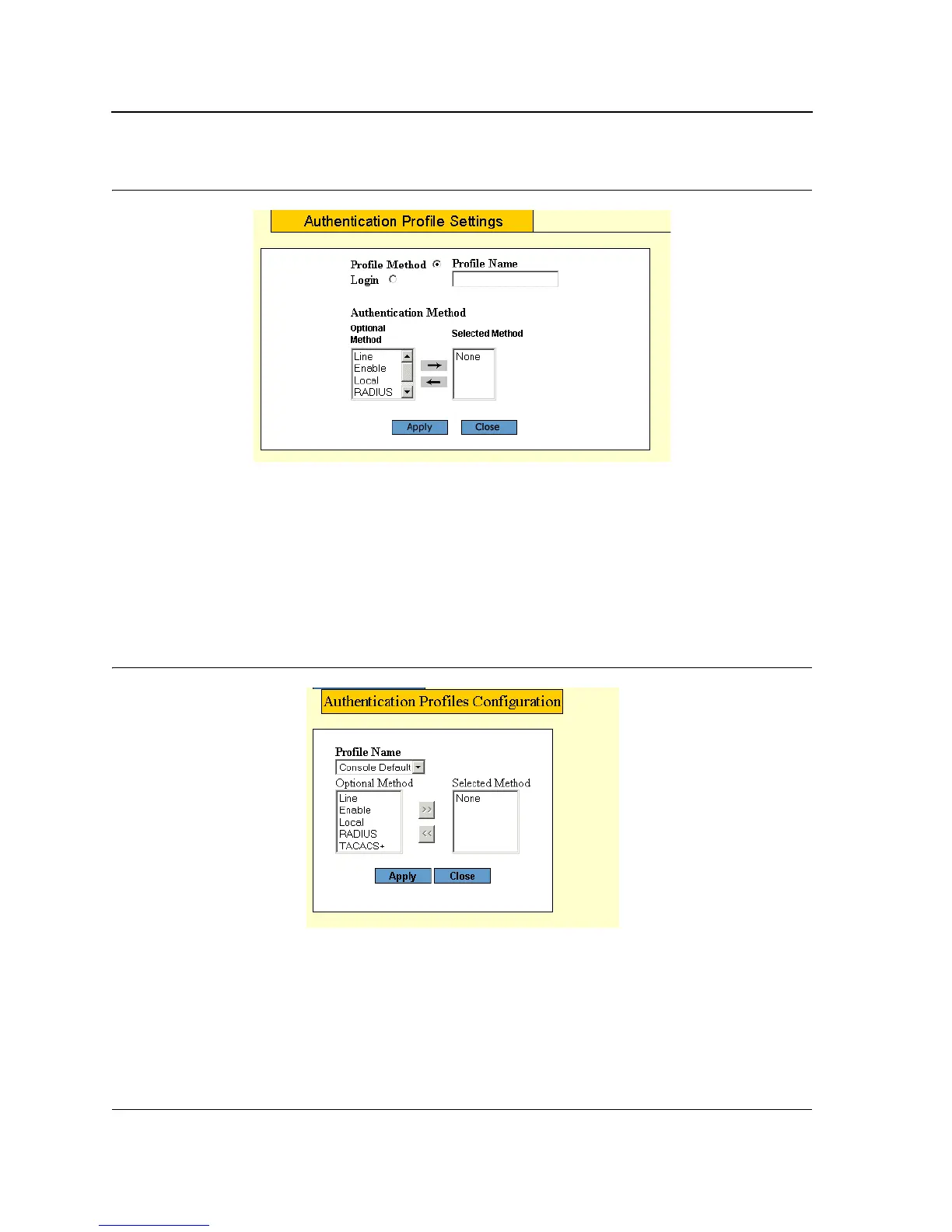

Figure 17: Add Authentication Profile Page
3. Select the type of function to configure for the profile: Method or Login.
4. Enter the Profile Name.
5. Using the arrows, move the method(s) from the Optional Method list to the Selected Method list.
6. Click Apply. The authentication profile is defined. The profile is added to the profiles table and the device is
updated.
To modify the authentication profile settings:
1. Click Mgmt. Security > Authentication Profiles. The Authentication Profiles Page opens.
2. Click Modify. The Authentication Profile Configuration Page opens:
Figure 18: Authentication Profile Configuration Page
3. Select the Profile Name from the list.
4. Using the arrows, move the method(s) from the Optional Method list to the Selected Method list.
5. Click Apply. The profile settings are saved and the device is updated.

Allied Telesis AT-8000S Series Specifications

General

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Humidity	5% to 95% non-condensing
Switching Capacity	104 Gbps
Forwarding Rate	77.4 Mpps
VLANs	4, 094
Layer 3 Features	Static routing, RIP v1/v2
Management	Web-based
Operating Humidity	10% to 90% non-condensing
